20-125-RWAC Oilfield Sucker Rods Thin Walled Cup Seating

Brand Name : Zhongshi

Model Number : Sucker rod pump

Certification : API, ISO, QHSE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/P, T/T, Western Union, D/A

Supply Ability : 1000 SETS/MONTH

Delivery Time : 10~15 workdays

Packaging Details : Standard exported packing

Type of seating assembly : Cup seating

Model : 20-125-RWAC

Type : Thin wall pump

Barrel material : Carbon steel

Plunger coating : Spray metal

API 11AX No. : 0061

Contact Now

20-125-RWAC Thin Walled Cup Seating Sucker Rod Pump

Thin Walled Cup Seating Sucker Rod Pump Description

Cup top seating sucker rod pump is the cup seating assembly rod pump.

There is a wide range of plunger (or pump-bore) sizes standardized by the industry. The API pump-bore sizes that are currently available range from 1 1/16 to 3 3/4 in. in diameter. This 1 1/16-in. size has been added back in the latest edition of the standard. Additionally, a new barrel type has been accepted in the latest API Spec. 11AX. This is the "X-type" barrel. It has a thin-walled barrel configuration for threads on either end of the heavy-walled barrel and is available for metal plungers only. This type of pump does not require the extension couplings normally needed for heavy-walled barrel pumps. Thus, this pump reduces the burst or collapse concerns of the thin-walled extension couplings and allows deeper producing depths to be attained.

Technical parameter list:

Specification Pump diameter (in) Barrel length (ft) Plunger length (ft) Stroke length (ft) Extension length (ft) Tubing size EUE(in)
15-106RHBC Ø26.99 1.9"
20-125RHAC Ø31.75 2.1-10 0.3-8.0 1.2-9.0 0.3-0.9 2-3/8”
20-125RHBC
25-150RHAC Ø38.10 2-7/8”
25-150RHBC Ø38.10
25-175RHAC Ø44.45
25-175RHBC
30-225RHBC Ø57.15 3-1/2"
30-225RHAC

Features


1. Model:20-125-RWAC
2. The material of cup seating assembly is composite, so the cup seating sucker rod pump is suitable for oil well with lower temperature
3. Thin wall pump

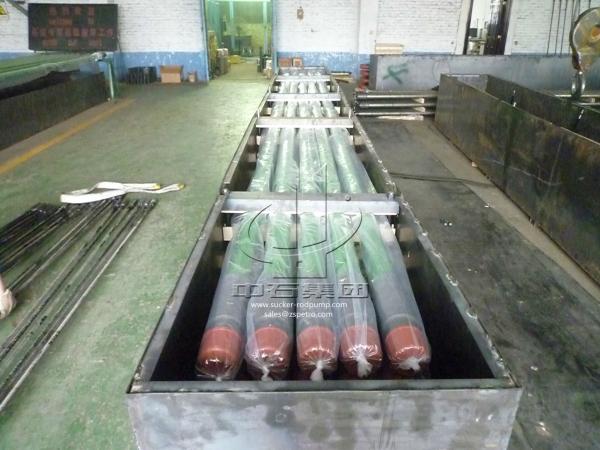

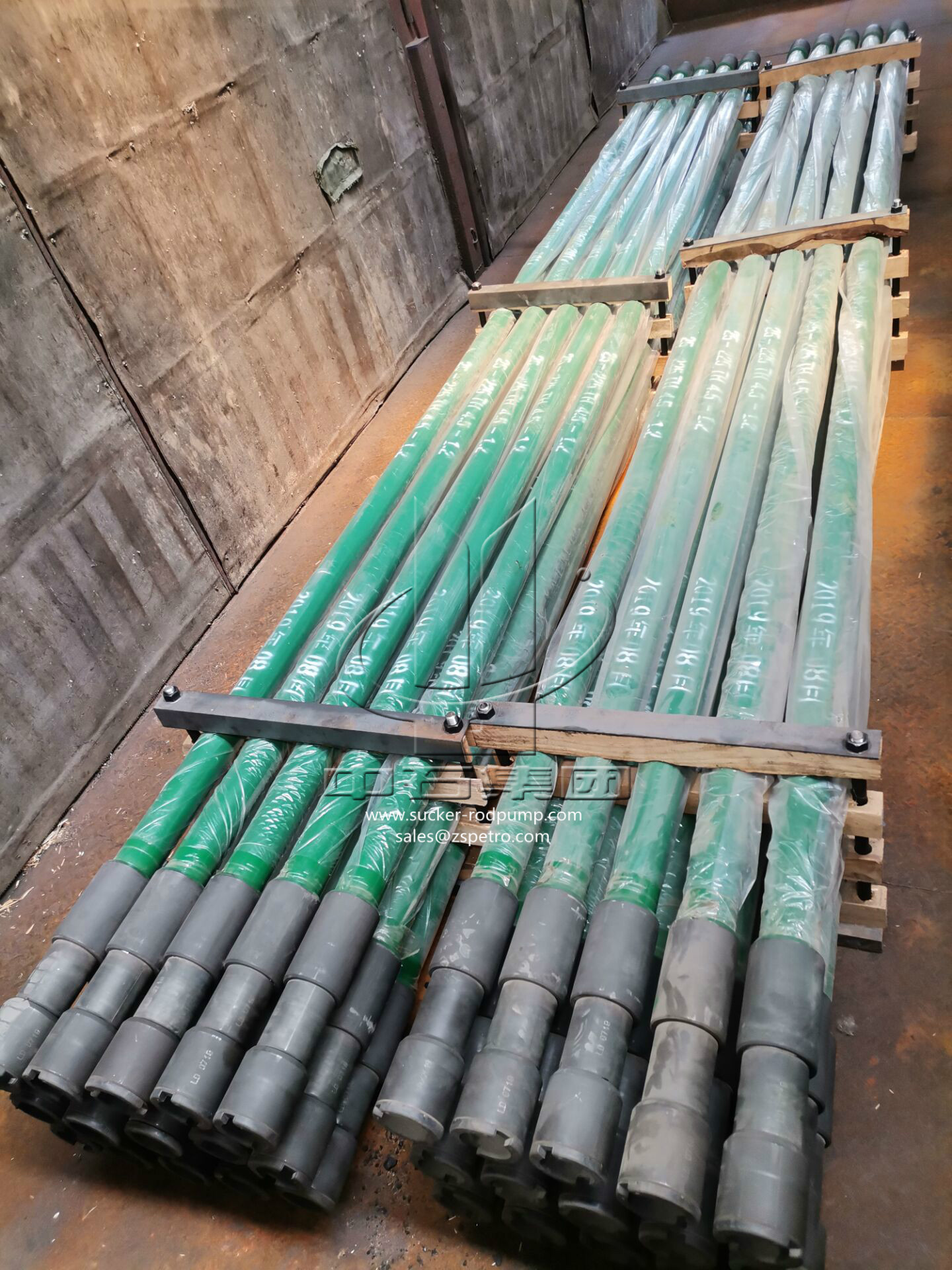

20-125-RWAC Oilfield Sucker Rods Thin Walled Cup Seating
