Name: API 11AX Ceramic Ball Valve Seat Corrosion Resistant HRC 5865
Brand: Zhongshi
Price: 1 USD

Brand Name : Zhongshi

Model Number : ZS

Certification : API，ISO，QHSE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Sets per Month

Delivery Time : 10~15 workdays

Packaging Details : Standard exported packing

Product : API 11AX Ceramic Valve Ball and Valve Seat

Code : V11-106

Material : Ceramic

Advantage : Corrosion resistant

other Material : stainless steel, tungsten carbide

Application : Sucker rod pump

Contact Now

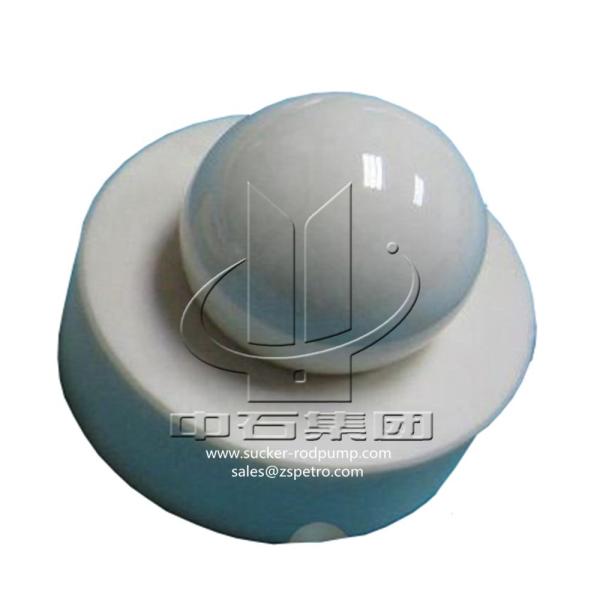

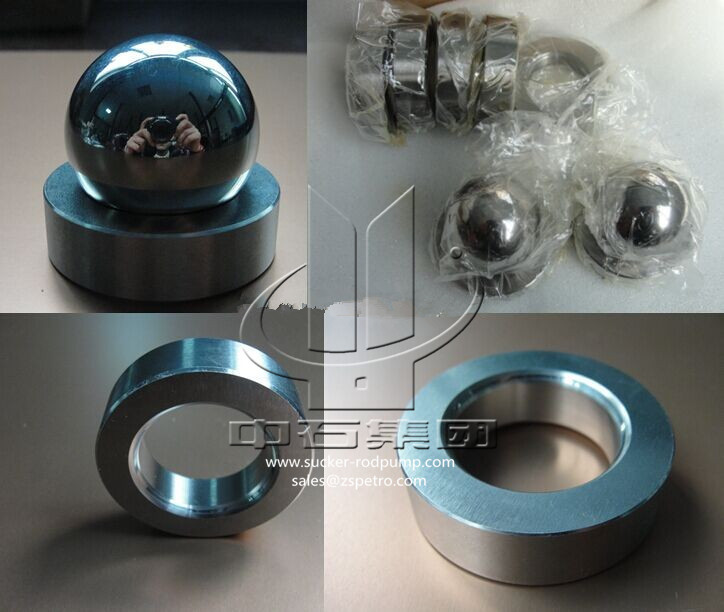

API 11AX Ceramic Valve Ball and Valve Seat

Product Description

High pressure sulfur resistant oil wells, compatible Cemented Carbide valve seats, etc.Various grades for

cemented carbide balls/pellets can be supplied according to customer's drawings.The surface finish,

tolerance class and tolerances of dimensions have respectively reached the standards of the machine industry.

API 11AX Ceramic Valve Ball and Valve Seat Features:

Available forms: end product or blank;
Properties: good resistance against corrosion and oxidation;
Main application: extensively used in petrochemical industry, marine exploration, heat exchanger and pump;
Processing: investment casting;
Maximum weight:

Material performance table

CODE	INSTRUCTION	HARDNESS	MATERIAL
A1	Stainless steel	Ball: HRC 58-65	UNS 41000–UNS 44000
		Seat: HRC 52-56	9Cr18Mo & 6 Cr18Mo
B1	Cobalt alloy casting	Ball: HRC 56-63	Cobalt, chromium and tungsten alloy
		Seat: HRC 50-56
B2	Cobalt alloy, powder metallurgy	Ball: HRC 53-60	Cobalt, chromium and tungsten alloy
		Seat: HRC 51-57
C1	Tungsten carbide	Ball: HRA 88-89	Tungsten with cobalt adhesive
		Seat: HRA 88-89.5
C3	Titanium carbon compounds	Ball: HRA 89-90.5	Tungsten and titanium with cobalt adhesive carbon compounds
		Seat: HRA 89-90.5

API 11AX Ceramic Ball Valve Seat Corrosion Resistant HRC 58-65
