Dia 44mm 1.75 Inch Oil Sucker Pump With Chrome Pump Barrel

Name: Dia 44mm 175 Inch Oil Sucker Pump With Chrome Pump Barrel
Brand: Zhongshi
Price: 1 USD

Brand Name : Zhongshi

Model Number : Sucker rod pump

Certification : API, ISO, QHSE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/P, T/T, Western Union, D/A

Supply Ability : 1000 SETS/MONTH

Delivery Time : 10~15 workdays

Packaging Details : Standard exported packing

Products : Oil Sucker Pump With Chrome Pump Barrel

Advantage : High Performance

Product name : sucker rod pump,Tubing Pumps

Color : Green Or As Your Request

Grade : Alloy steel

Standard : API 11AX

Contact Now

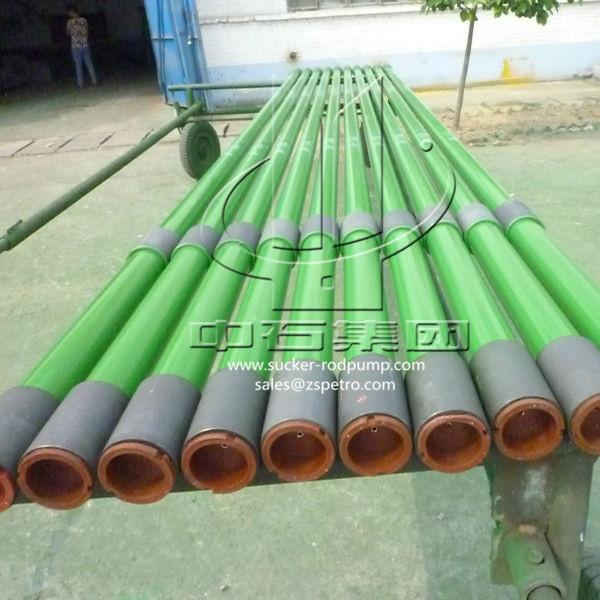

Oil Sucker Pump With Chrome Pump Barrel

Product description

The applicable tubing pump is larger in size than rod pump in the same tubing. Tubing pump has simple structure so the displacement is bigger and it is suitable for the shallower well with shallow depth and high production.

Technical Specifications

Model	mm(in)Nominal Dia.	m(ft)Plunger Length	Stroke m	m3/d Pump Constant	Tubing And Thread	In Sucker Rod
20-125TH	32(1.25)	1.2-1.8 (4-6)	0.6-7.3	1.14	2⅜NU/EU	¾
25-125TH	32(1.25)		0.6-7.3	1.14	2⅞NU/EU	¾
20-150TH	38(1.50)		0.6-7.3	1.64	2⅜NU/EU	¾
25-150TH	38(1.50)		0.6-7.3	1.64	2⅞NU/EU	¾
20-175TH	44(1.75)		0.6-7.3	2.24	2⅜NU/EU	¾
25-175TH	44(1.75)		0.6-7.3	2.24	2⅞NU/EU	¾
25-225TH	57(2.25)		0.6-7.3	3.69	2⅞NU/EU	¾
30-275TH	70(2.75)		0.6-7.3	5.50	3½NU/EU	⅞
35-325TH	83(3.25)		0.6-7.3	7.70	4NU/EU	⅞
40-375TH	95(3.75)		0.6-7.3	10.26	4½NU/EU	1

Dia 44mm 1.75 Inch Oil Sucker Pump With Chrome Pump Barrel
