Heavy Wall Barrel Well Pump Tubing For Oilfield Production With Simple Operation

Name: Heavy Wall Barrel Well Pump Tubing For Oilfield Production With Simple Operation
Brand: Zhongshi
Price: 1 USD

Heavy Wall Barrel Well Pump Tubing For Oilfield Production With Simple Operation Manufactures

Brand Name : Zhongshi

Model Number : Tubing Pump

Certification : TH(B)M Tubing

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 1000 SETS/MONTH

Delivery Time : 10~15 workdays

Packaging Details : Standard exported packing

Product Name : TH(B)M Tubing

Manufacturer : Puyang Zhongshi Group

Usage : Oilfield production

Barrel Type : Heavy Wall Barrel

Contact Now

Heavy Wall Barrel Well Pump Tubing For Oilfield Production With Simple Operation

Product description:

The barrel assembly of tubing pump is connected directly fixed on the tubing string, and with the pump down to the bottom. Plunger assembly is connected with rod string and down into the bottom hole pump barrel, moving up and down, so as to realize the production process.
In the process of production, when traveling valve and standing valve have problems , they can be put out of the well through the rod string, plunger and puller, without put the whole pump and tubing string out of the well, reduce the labor intensity of operation, reduce the operation cost.

Technical parameter list:

Specification	Pump diameter (in)	Barrel length (ft)	Plunger length (ft)	Stroke length (ft)	Extension length (ft)	Tubing size EUE(in)	Sucker rod size
20/25-106THM	Ø26.99	≦6	0.3-8.0	1.2-9.0	0.6-1.2	2-3/8” 2-7/8”	CYB16 CYB19 CYB25
20/25-125THM	Ø31.75	2.1-10.4
20/25-150THM	Ø38.10
20-175THM	Ø44.45
25-200THM	Ø50.80
25-225THM	Ø57.15
30-275THM	Ø69.85					3-1/2”
40-375THM	Ø95.25					4-1/2”

Heavy Wall Barrel Well Pump Tubing For Oilfield Production With Simple Operation

Product Tags:

plunger oil pump

deep well pump

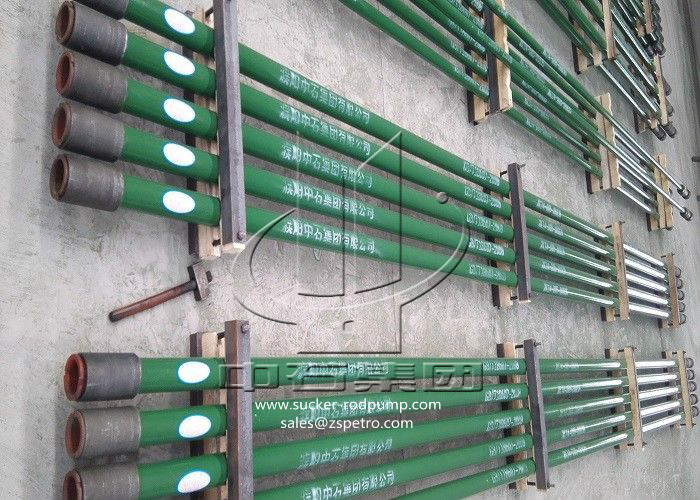

Heavy Wall Barrel Well Pump Tubing For Oilfield Production With Simple Operation Images
