Brand Name : Puyang Zhongshi Group
Model Number : 4 1/2"~36"
Certification : API,ISO,QHSE
Place of Origin : China
MOQ : 1
Price : Negotiable
Payment Terms : T/T, MoneyGram
Delivery Time : depends on quantity
Packaging Details : Wooden Box
Type : Solid Rigid type
Installation : Slip-on Type
Process : Casting
Vane Type : Spiral
Color : Red Color
Application : Well cementing

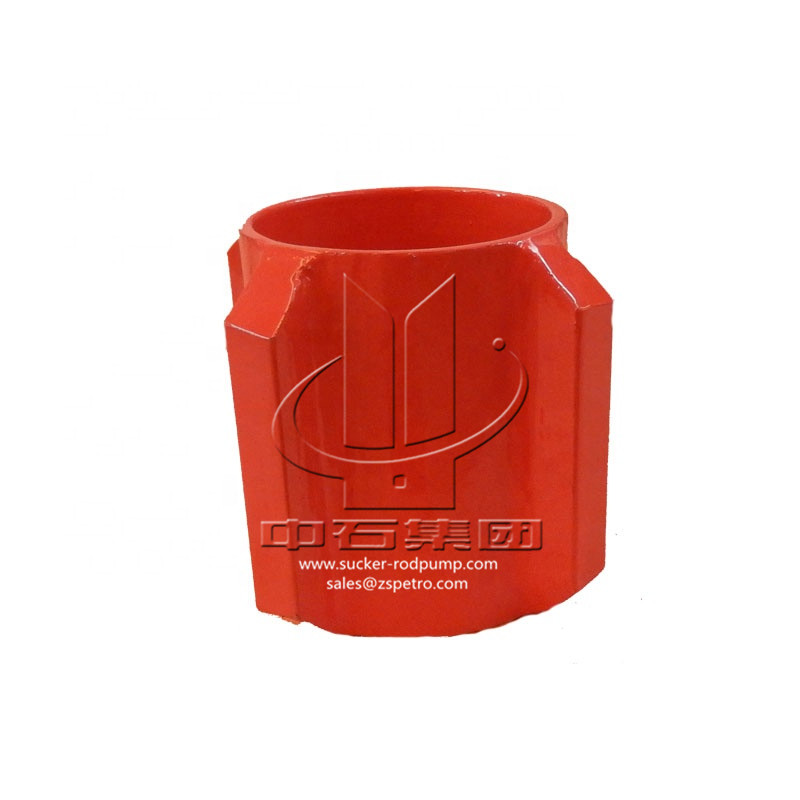

Solid Rigid Spiral Vane Casing Centralizer
Solid Rigid Spiral Vane Casing Centralizer provide a wide range of options for casing centralization, from standard vertical well configurations to highly deviated and horizontal wells. Their high-quality construction provides great strength and downhole integrity.
Specification | casing size (mm) | Outer Diameter (mm) | Hole Size (mm) | Inner Diameter (mm) |
4-1/2"×6" | 114 | 146 | 152 | 118 |
5"×6 5/8" | 127 | 162 | 168 | 131 |
5-1/2″×8-1/2″ | 140 | 210 | 216 | 142 |
6-5/8″×8-1/2″ | 168 | 210 | 216 | 172 |
7″×8-1/2″ | 178 | 210 | 216 | 182 |
7"× 9-1/2" | 178 | 235 | 241 | 182 |
9-5/8″×12-1/4″ | 244 | 305 | 311 | 249 |
13-3/8″×17-1/2" | 340 | 439 | 445 | 344 |
![]() |
Solid Rigid Spiral Vane 4-1/2"×6" Bow Spring Centralizer Images |
