Heavy Duty Solid Rigid Straight Vane Casing Centralizer

Brand Name : Puyang Zhongshi Group

Model Number : 4 1/2"~36"

Certification : API,ISO,QHSE

Place of Origin : China

MOQ : 1

Payment Terms : T/T, MoneyGram

Delivery Time : depends on quantity

Packaging Details : Wooden Box

Price : Negotiable

Type : Heavy Duty

Vane : Sprial or Straight

Roller : Without roller

Material : 65Mn,steel 20

Color : Red Color

Feature : Used in deviated wells and horizontal wells

Contact Now

Heavy Duty Solid Rigid Straight Vane Casing Centralizer

The heavy steel construction is highly effective as compare to other alloy, it is designed especially for highly deviated and Horizontal wells. They are ideal for use with liner hangers and the vanes can be selected to meet any hole dia from a choice of seven boat profile depths.

Features

  • The non-weld design eliminates any weak spots.

  • Tapered pin hold the bows and hinges in the collars

  • High-quality, super-strengthen spring-steel bows.

  • The whole casing centralizer is made without any rivet and no welding.

  • The whole casing centralizer is composed of 3 parts, the spring, the hinges and tapered pin.

  • Easy for installation and transport

Specification

Size

(inch)

Inner Diameter

(mm)

Outer Diameter

(mm)

 Height
(mm)
13 3/8 343 400 130
10 3/4 276 308 120
9 5/8 247 308 120
7 5/8 197 243 120
7 180 212 120
5 1/2 143 213 120
5 130 151 120
4 1/2 117 148 100
4 104 118 80

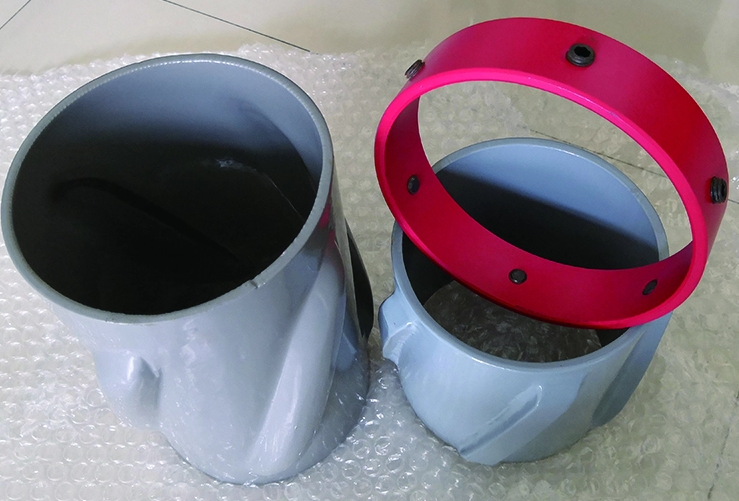

Heavy Duty Solid Rigid Straight Vane Casing CentralizerHeavy Duty Solid Rigid Straight Vane Casing Centralizer
