Steel Slip On Cementing Wiper Plugs For Oilfield Well Drilling

Brand Name : Puyang Zhongshi Group

Model Number : 4 1/2"~20"

Certification : API,ISO,QHSE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, MoneyGram

Delivery Time : depends on quantity

Packaging Details : Wooden Box

Product : Oilfield Cementing Tool Cement Wiper For Well Drilling

Installation : Slip-on

Material : Steel

Size : 4 1/2"~36"

Process : Casting

Application : Oilfield Cementing Equipment

Contact Now

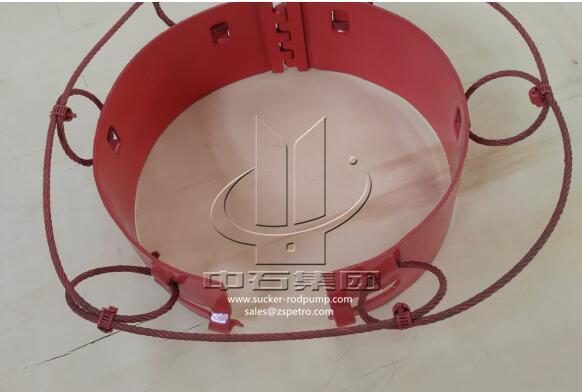

Oilfield Cementing Tool Cement Wiper For Well Drilling

Cement wiper is able to maintain a powerful grip without harming the casing via a draw-bolt tightening mechanism, thus removing the need for a stop collar. This reciprocating wiper is recommended for use with all standard casing grades and versions are available for all standard casing sizes.

Oilfield Cementing Tool Cement Wiper For Well Drilling Features
  • Hinged collar design features a looped cable design.
  • Install by torqueing draw bolt to a maximum of 30ft. -lbs.
  • Parts are manufactured after receipt of order.
  • Other sizes available upon request.
Oilfield Cementing Tool Cement Wiper For Well Drilling Specification
Specification

casing size

(mm)

Outer Diameter

(mm)

Hole Size

(mm)

 Inner Diameter (mm)
4-1/2"×6" 114 146 152 118
5"×6 5/8" 127 162 168 131
5-1/2″×8-1/2″ 140 210 216 142
6-5/8″×8-1/2″ 168 210 216 172
7″×8-1/2″ 178 210 216 182
7"× 9-1/2" 178 235 241 182
9-5/8″×12-1/4″ 244 305 311 249
13-3/8″×17-1/2" 340 439 445 344
