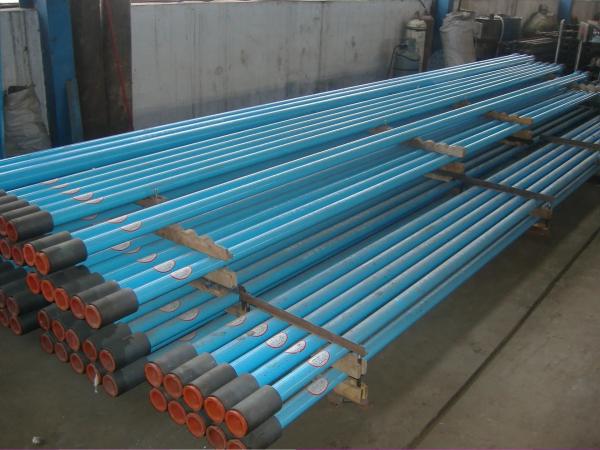

Petroleum Machinery Oil Well Tubing Pump With Cup Seating Chrome Plated Barrel

Brand Name : Zhongshi

Model Number : TH(B)M

Certification : API, ISO, QHSE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/P, T/T, Western Union, D/A

Supply Ability : 1000 SETS/MONTH

Delivery Time : 10~15 workdays

Packaging Details : Standard exported packing

Machine type : Petroleum Machinery

Application : Oil production

Barrel wall : Heavy walled

Pump barrel coating : Chrome plated

Seating type : Cup seating

Seating location : Bottom

Contact Now

Cup Seating And Chrome Plated Barrel Oil Well Tubing Pump

Cup seating and chrome plated barrel tubing pump description:

In the process of oil production with tubing pump, when traveling valve and standing valve appear problems,we can pull the traveling valve and standing valve out the well through the sucker rod string, plungerand the puller ,instead of pull the whole pump and tubing string out of the well, reduce the labor intensity of operation, reduce the operation cost.

The downhole sequence of the tubuing pump: the tubing pumps are divided into two parts: the pump assembly and the plunger assembly. C34 is the tubing coupling. The pump assembly is connected to the bottom of the tubing string through C34 and goes down into the well along with the tubing string. . The plunger assembly is attached to the sucker rod column through the C11 upper travel valve cover and is lowered into the well.

API pump model technical parameters table:

Pump model Pump bore(in) Plunger length (mm) Stroke length(mm) Pump Constant (m3/d) Size of matched tubing (in) Size of connecting Sucker Rod(mm) Length of extension Coupling
25-125 1.25 600-1200 600-1200 1.14 2-1/2 2-7/8 16 300-900
25-150 1.5 1.642 2-1/2 2-7/8 16
25-175 1.75 2.235 2-1/2 2-7/8 16
20-175
25-225 2.25 3.694 2-7/8 19
25-275 2.75 5.518 2-7/8 22
30-275 2.75 5.518 3-1/2 22
30-325 3.25 7.707 3-1/2 22
30-375 3.75 10.261 3-1/2 25
40-375 3.75 10.261 4 25

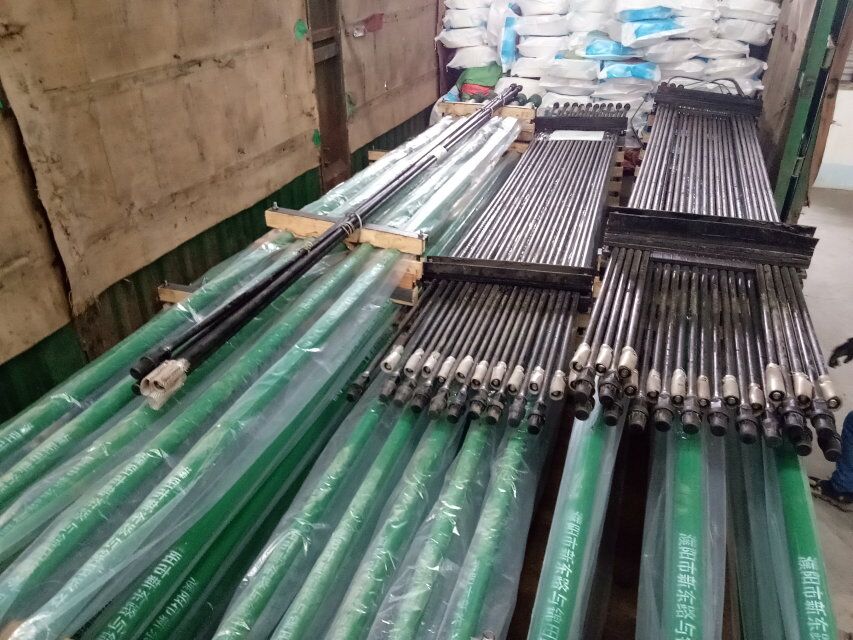

Tubing pump delivery photo:

Petroleum Machinery Oil Well Tubing Pump With Cup Seating Chrome Plated Barrel
