From 15-105 to 30-250 API Rod Inserted Pump
From 15-105 to 30-250 API Rod Inserted Pump description:
In the RHBC bottom anchor rod inserted pump, the plunger is directly connected with the sucker rod string, and then they move together. The barrel is anchored at the bottom by a bottom seating cup. It is suitable for deep well since the barrel only bears pressure from outside and does not bear tensile load and its clearance change is small. But it is not recommended for sandy wells since there is no circulation for the well fluid around the outside of the barrel so pump may become stuck in the tubing by packed sand.
This rod inserted pump has the following advantages,
1.Because the pump barrel can only bear the external hydrostatic pressure rather than the tension load caused by the fluid column weight, there is little change in plunger clearance. This makes the pump suitable for deep wells
2.Compared with other standard deep well pumps, the pump barrel is less likely to crack or bend under pressure
3.The pump is suitable for deviated wells. However, care should be taken to avoid wearing between the valve stem guide cage and the valve stem. If the guide cage is too hard, it will wear the valve stem. However, this rod pump cannot be used as a long stroke pump or in sandy oil wells
RWAC rod inserted pump technical parameters:
| RWAC model | Pump OD (in) | Barrel length (ft) | Plunger length (ft) | Stroke length (ft) | Extension length (ft) | Tubing size EUE(in) | Sucker rod size |
| 20-125RWAC | Ø1.25” | +2.1-10.4 | 0.3-8.0 | 1.2-9.0 | / | 2-3/8” | CYJ16 CYJ19 |
| 20-150RWAC | Ø1.50” | 2-3/8” |
| 25-200RWAC | Ø2.00” | 2-7/8” |
| 30-250RWAC | Ø2.50” | 3-1/2 |
Rod inserted pump features:
1. Stable performance, high pumping efficiency.
2. Simple operations.
3. Suitable for high temperature, corrosion, sand and less gas well conditions.

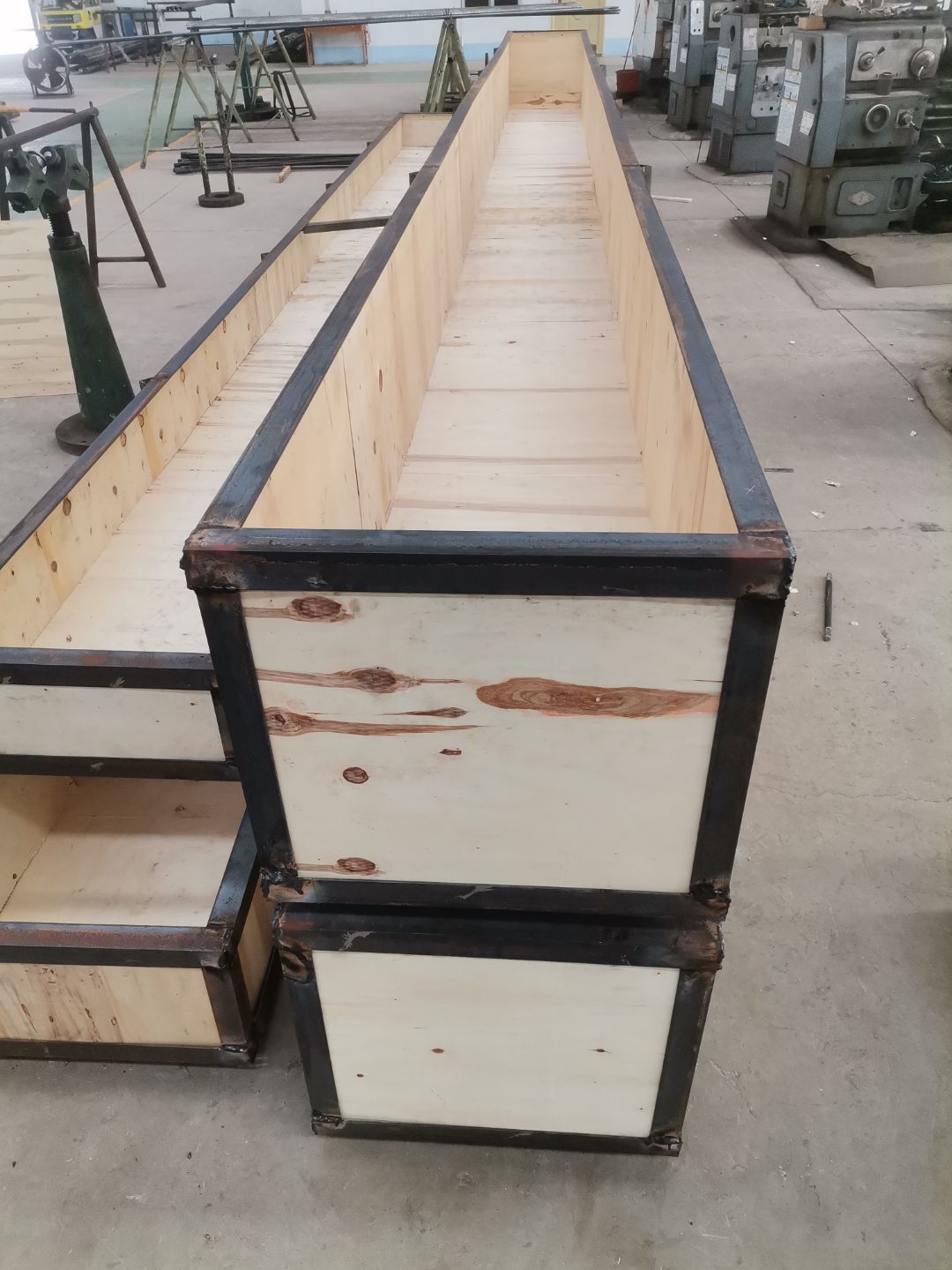

Rod inserted pump packing box photo:
