1.75" Small Size THM Subsurface Sucker Rod Pump
Small size THM subsurface sucker rod pump:
Subsurface pumps covered by API Spec 11AX, including all barrel and plunger materials and surface finishes.Puyang Zhongshi's sucker rod pumps can be furnished with the components most suitable for your field of application and pumping operations can easily be extended to corrosive environments.
Sucker Rod pump is also known as insert rod pump, it is one type of the conventional sucker rod pumps. The rod pump is connected to the sucker rod directly, it can be pulled out with sucker rod and does not influence the tubing, so the well inspection and workover is more convenient. It can save half times and reduce cost of the pumping test, thus the rod pump is suitable for the deeper well.
Sucker rod pumps technical information:
| Pump name | Sucker rod pump |
| Certification | API 11AX,ISO 9001 |
| Type | Rod pump,tubing pump |
| Material | Chromium Molybdenum Alloy Steel |
| Processing type | 1. CNC turning machine
2. Chrome plating machine
3. Metal spray welding machine
4. Spraying metal remelting machine
5. Honing machine
6. Grinding machine
7. Hydraulic Pressure testing pump |
| Shape | Hollow cylinder |
| Length | As requested |
| Diameter | 28 mm to 108 mm |
| Tensile strength | 90000-173339 psi |
| Yield strength | 60000-115000 psi |
| Barrel | Chrome plated or carbonitride surface
Carbonization quench
Chrome plating technology |
| Plunger | Metal spray or chrome plated surface
Thermal metal spraying technology |
| Valve seat and ball | Stainless steel and tungsten carbide |
Thin wall sucker rod pump technical data table:
| Basic pump parts | Thin wall rod pump | Thick wall rod pump |
| Pump diameter (in) | 1 1/4-2 1/2 | 1 1/4-2 1/2 |
| Plunger length (ft) | 2-24 |
| Barrel length (ft) | 2-34 |
| Material | Barrel: A1~A6, B1~B6, C1~C5, D1~D5, N1~N6 Plunger: B1~B3, C1~C3, D1~D3, E1~E3, F1~F3 |
Features:
1.It is suitable for corrosion and small amount of sand and gas, deep Wells, such as complex well conditions.
2.Usage is safe, performance stable.

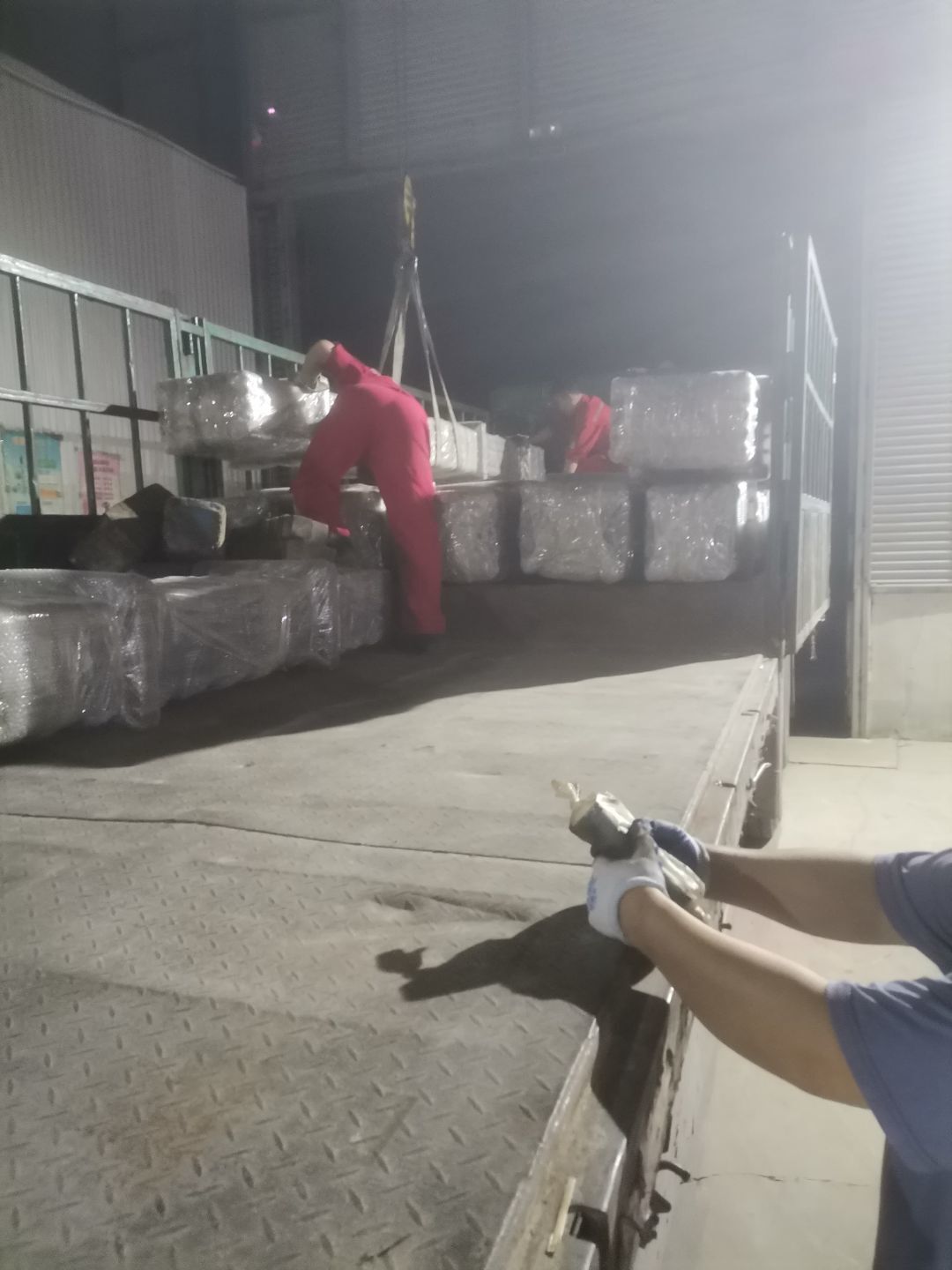

Sucker rod pump delivery:
