Tungsten Carbide Spray Metal Plunger Sucker Rod Pumps

Brand Name : Zhongshi

Model Number : RWBM

Certification : API, ISO, QHSE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/P, T/T, Western Union, D/A

Supply Ability : 1000 SETS/MONTH

Delivery Time : 10~15 workdays

Packaging Details : Standard exported packing

Pump barrel material : Chrome plated or surface hardened technology

Plunger coating : Tungsten carbide metal spray

usage : Oilfield

Main parts : Pump barrel, plunger, valve ball & seat

Pump type : Sucker rod pump

Warranty : 12 months

Origin : China

Contact Now

Tungsten Carbide Spray Metal Plunger Rod Insert Pump

Tungsten carbide spray metal plunger rod insert pump description:

Rod pump is also known as insert rod pump, it is one type of the conventional sucker rod pumps. The rod pump is connected to the sucker rod directly, it can be pulled out with sucker rod and does not influence the tubing, so the well inspection and workover is more convenient. It can save half times and reduce cost of the pumping test, thus the rod pump is suitable for the deeper well.

Depending on the wall thickness of the barrel, the rod pump can be classified as either a thin wall rod pump or a thick wall rod pump.Puyang Zhongshi Group manufacture these insert rod pumps according to different requirements of customer’s.

There are seven major components for downhole rod pumps: standing and traveling valves, plunger, barrel, seating assembly, pull tube or valve rod (for insert pump), and the fittings that hold the assembled pump together.

Technical parameters for API 11AX pumps:

1 2 3 4 5

Type of Pump

 Letter Designation
Metal Plunger Pumps Soft-Packed Plunger Pumps

Heavy-Wall Barrel

Thin-Wall Barrel

Heavy-Wall Barrel

Thin-Wall Barrel
Rod Pumps
Stationary Barrel, Top Anchor RHA RWA RSA
Stationary Barrel, Bottom Anchor RHB RWB RSB
Stationary Barrel, Bottom Anchor RHT RWT RST
Tubing Pumps TH -- TP --

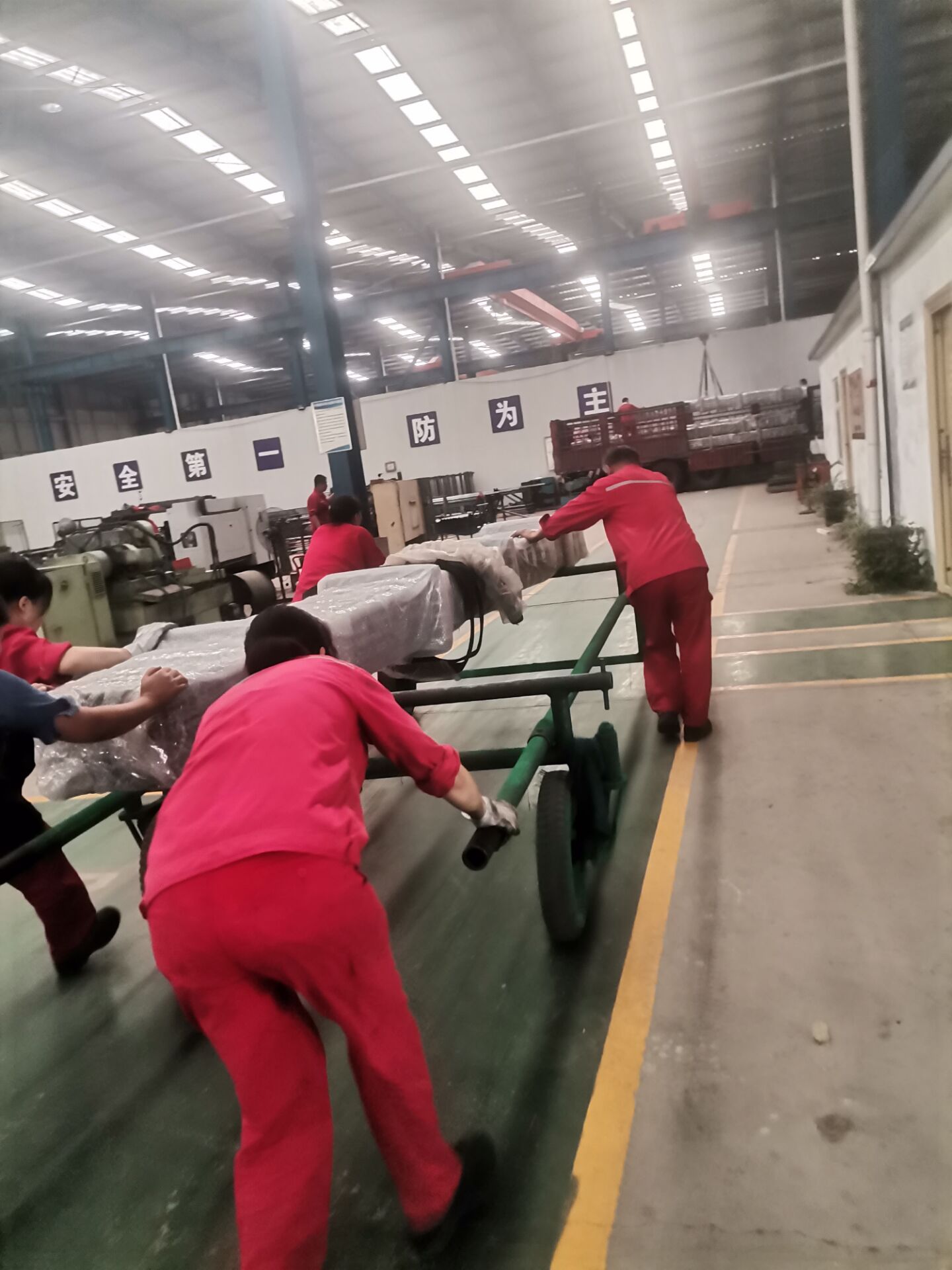

Pump delivery photo:

Tungsten Carbide Spray Metal Plunger Sucker Rod Pumps
