Carbon Steel Structure Rod Insert Pump Chrome Plated Sucker Rod

Name: Carbon Steel Structure Rod Insert Pump Chrome Plated Sucker Rod
Brand: Zhongshi
Price: 1 USD

Brand Name : Zhongshi

Model Number : RHAC RHBM RHBC RWAM RWAC RWBM

Certification : API, ISO, QHSE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/P, T/T, Western Union, D/A

Supply Ability : 1000 SETS/MONTH

Delivery Time : 10~15 workdays

Packaging Details : Standard exported packing

Structure type : Inserted pump

Model : RH and RW

Pump type : sucker rod pump

Application : Oil production

Barrel wall type1 : Heavy wall

Barrel wall type2 : Thin wall

Barrel material : Carbon Steel

Contact Now

Chrome Plated Barrel Sucker Rod Inserted Structure Pump

Chrom plated barrel insert pump description

Puyang Zhongshi Group manufacture all subsurface pumps covered by API Spec 11AX, including all barrel and plunger materials and surface finishes.

Two basic type: Sucker rod pump; tubing pump

Comparing with conventional tubing pump, The API sucker rod pump and tubing Pump has better performance in corrosion resistance & antifriction aspects. Plunger of it is nickel plated on alloy base, inside wall of barrel is plated hard cadmium, key parts, such as valve hood, valve ball, are made of materials with excellent mechanical performance and corrosion resistant property. Compared with conventional pump, the series of pump has a longer working life.

Main parts process and material:
Pump barrel: plain carbon steel plating (A1), ordinary carbon steel carbonitriding (B1), ordinary carbon steel carburizing (B2), low alloy steel nitride (B5).
Plunger: 1045 steel spraying (B1), 1045 steel spraying (B2), 1045 steel chrome plating (A1), 1045 steel double chrome plating (A2).
Valve ball and seat: stainless steel (A1), cobalt chromium (B2), tungsten carbide (C1), nickel and carbon compounds (C2), titanium carbide (C3).
Other accessories: plain carbon steel, low alloy steel, stainless steel, brass and other materials.

Downhole rod pump technical parameters:

API models	mm(in) Nominal OD	Plunger Length m(ft)	Stroke m	Pump Constant m3/d	Tubing	Sucker rod size
20-125TH	32(1.25)	1.2-1.8 (4-6)	0.6-7.3	1.14	27/8NU/EU	¾
20-125RHAC/M	32(1.25)		0.6-7.3	1.14	27/8NU/EU	¾
20-125RHBC/M	32(1.25)		0.6-7.3	1.14	27/8NU/EU	¾
20-125RHTC/M	32(1.25)		0.6-7.3	1.14	27/8NU/EU	¾
25-125TH	32(1.25)		0.6-7.3	1.14	27/8NU/EU	¾
25-150RHAC/M	38(1.50)		0.6-7.3	1.64	27/8NU/EU	¾
25-150RHBC/M	38(1.50)		0.6-7.3	1.64	27/8NU/EU	¾
25-150RHTC/M	38(1.50)		0.6-7.3	1.64	27/8NU/EU	¾
20-150TH	38(1.50)		0.6-7.3	1.64	27/8NU/EU	¾
25-150TH	38(1.50)		0.6-7.3	1.64	27/8NU/EU	¾
20-175TH	44(1.75)		0.6-7.3	2.24	27/8NU/EU	¾
25-175RHAC/M	44(1.75)		0.6-7.3	2.24	27/8	¾
25-175RHBC/M	44(1.75)		0.6-7.3	2.24	27/8NU/EU	¾
25-175RHTC/M	44(1.75)		0.6-7.3	2.24	27/8NU/EU	¾
25-175TH	44(1.75)		0.6-7.3	2.24	27/8NU/EU	¾
25-225TH	57(2.25)		0.6-7.3	3.69	27/8NU/EU	¾
30-275TH	70(2.75)		0.6-7.3	5.50	3½NU/EU	7/8
30-225RHAC/M	57(2.25)		0.6-7.3	3.69	3½ NU/EU	¾
30-225RHBC/M	57(2.25)		0.6-7.3	3.69	3½ NU/EU	¾
30-225RHTC/M	57(2.25)		0.6-7.3	3.69	3½ NU/EU	¾
35-325TH	83(3.25)		0.6-7.3	7.70	4NU/EU	7/8
40-375TH	95(3.75)		0.6-7.3	10.26	4½NU/EU	1

Downhole rod pump features:

1. Inserted type configuration

2. Tubing pump is suitable for large volume oil production

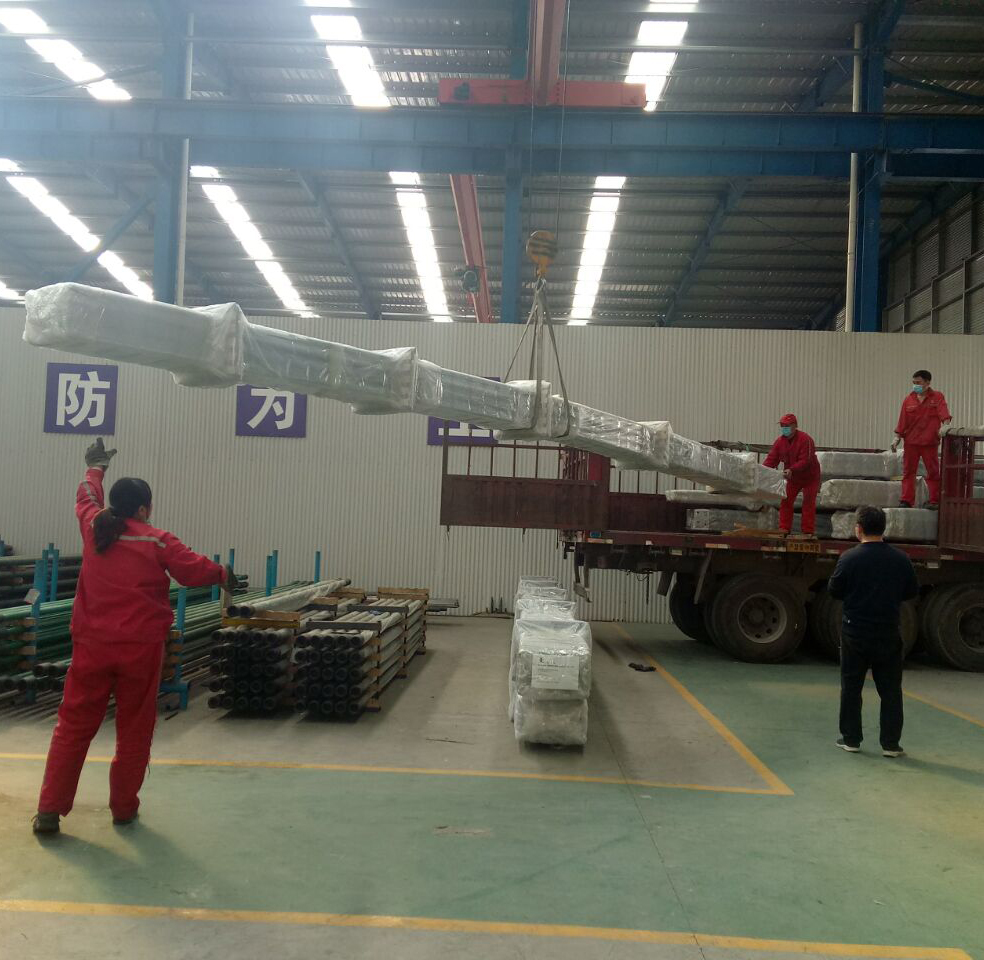

Delivery photo:

Carbon Steel Structure Rod Insert Pump Chrome Plated Sucker Rod
