25-150 Professional Oilfield Rod Insert Downhole Pump
Oilfield rod insert downhole pump description
Sucker Rod pump is also known as insert rod pump, it is one type of the conventional sucker rod pumps. The rod pump is connected to the sucker rod directly, it can be pulled out with sucker rod and does not influence the tubing,
Comparing with conventional tubing pump, ours has better performance in corrosion resistance & anti-friction aspect. Plunger of it is nickel plated on alloy base, inside wall of barrel is plated with hard cadmium, key parts, such as valve hood, valve ball, are made of materials with excellent mechanical performance and corrosion resistant property. Compared with conventional pump, the series of pump has a longer working life.
API-RHAC, Rod, Stationary Heavy Wall Barrel, Cup Top Anchor Pump
API-RHBM, Rod, Stationary Heavy Wall Barrel, Mechanical Bottom Anchor Pump
API-RHBC, Rod, Stationary Heavy Wall Barrel, Cup Bottom Anchor Pump
API-RWAM, Rod, Stationary Thin Wall Barrel, Mechanical Top Anchor Pump
API-RWAC, Rod, Stationary Thin Wall Barrel, Cup Top Anchor Pump
API-RWBM, Rod, Stationary Thin Wall Barrel, Mechanical Bottom Anchor Pump
RH series pump technical parameter table
| API RH model | Pump OD (in) | Barrel length (ft) | Plunger length (ft) | Stroke length (ft) | Extension length (ft) | Tubing size EUE(in) | Sucker rod size |
| 15-106RHBC | Ø26.99 | 2.1-10.4 | 0.3-8.0 | 1.2-9.0 | 0.3-0.9 | 1.9” | CYJ16 CYJ19 |
| 20-125RHBC | Ø31.75 | 2-3/8” |
| 25-150RHBC | Ø38.10 | 2-7/8” |
| 25-175RHBC | Ø44.45 | 2-7/8” |
| 30-225RHBC | Ø57.15 | 3-1/2” |
Oilfield Rod Insert Downhole Pump features:
1. 25-150 middle size
2. RH series is the heavy wall barrel pump

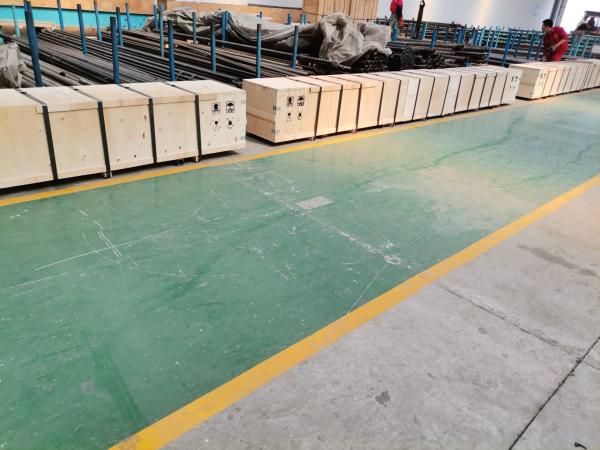

Pump delivery photo:
