Slurry Washing Casing Float Shoe And Float Collar Oilfield Drillable Tool

Brand Name : Puyang Zhongshi Group

Model Number : 4 1/2"~36"

Certification : API,ISO,QHSE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, MoneyGram

Delivery Time : depends on quantity

Packaging Details : Wooden Box

Product : Oilfield Drillable Tool Casting Float Shoe And Float Collar

Connection : STC/BTC/LTC

Valve : Single or Double

Advantage : Integral bow design for increased strength and performanc

Application : For distributing the cementing slurry and washing out bridges

Grade : N80, K55, J55, L80, P110

Contact Now

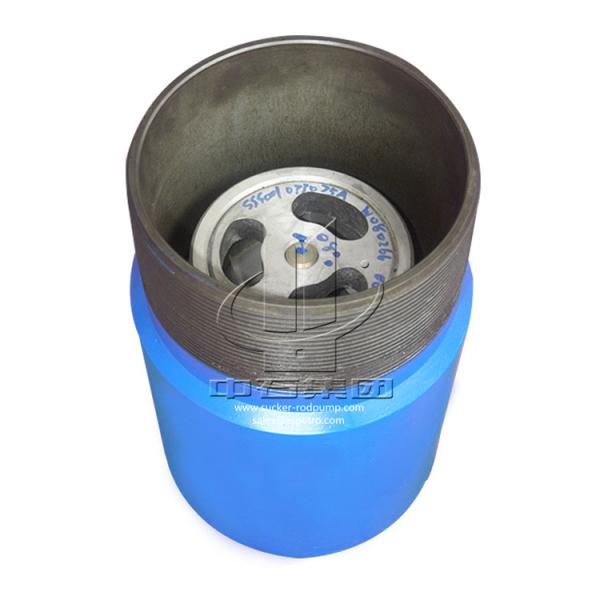

Oilfield Drillable Tool Casting Float Shoe And Float Collar

Float collars&shoes are provided with properly drilled angled holes which ensure even distribution of fluid with added assurance that circulation of fluid is not interrupted when casing becomes plugged during running or is rested on bottom.

Oilfield Drillable Tool Casting Float Shoe And Float Collar Features

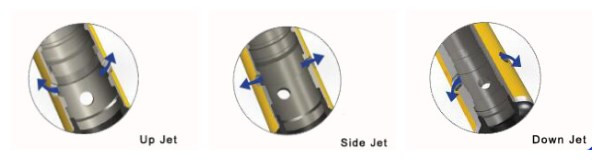

  • Float collar&shoe is available with up jet,side jet and down jet.

  • Enhancement of fluid turbulence helps in preventing channeling near the shoe thus aiding in hole cleaning.

  • Float collars and float shoes are tested and rated in compliance with API requires speccification.

  • Used for distributing the cementing slurry and washing out briges

Oilfield Drillable Tool Casting Float Shoe And Float Collar Specification
Specification(in) Min.Dia. Total O.D. I.D. Working Pressure Connection Type
(mm) Length (mm) (mm)
Float Collar 5" 50 500 141.3 110 21~35 BTC/LTC/BCSG
5 1/2" 55 530 153.67 112 21~35 BTC/LTC/BCSG
7" 77 586 194.46 162.5 21~35 BTC/LTC/BCSG
9 5/8" 77 720 270 225 21~35 BTC/LTC/BCSG
13 3/8" 77 720 365 319 21~35 BTC/LTC/BCSG
20" 77 720 533.4 475 21~35 BTC/LTC/BCSG
Float
Shoe		 5" 50 495 140.3 110 21~35 BTC/LTC/BCSG
5 1/2" 55 514 153.67 112 21~35 BTC/LTC/BCSG
7" 77 533 194.46 162.5 21~35 BTC/LTC/BCSG
9 5/8" 77 550 269.88 225 21~35 BTC/LTC/BCSG
13 3/8" 77 550 339.7 319 21~35 BTC/LTC/BCSG
20" 77 652 534 475 21~35 BTC/LTC/BCSG
