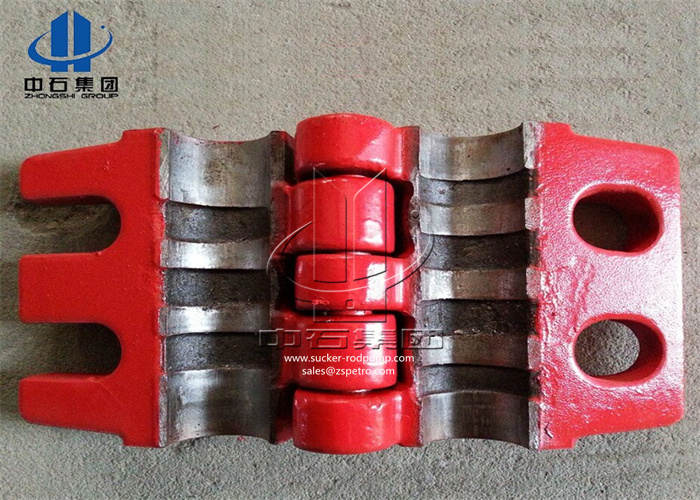

AISI Connect Steel Polished Rod Clamp Pump Unit For Oilfield

Brand Name : Zhongshi

Model Number : Sucker rod clamp

Certification : API 11B ,ISO ,QHSE

Place of Origin : China

MOQ : Discussion

Price : Negotiable

Payment Terms : D/P, T/T, D/A

Supply Ability : 50000 pcs per month

Delivery Time : Soonly

Packaging Details : As Required

Product : Polished Rod Clip/Clamp

Material : AISI 4130

Length : standard

sucker rod size : 5/8", 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-1/2"

key words : Rony rod Polished rod Clip/Clamp

Contact Now

API 11B certificate triple bolts polished rod clip/clamp for oilfield

Products Descripition:

1. Chemical Composition

To meet the requirements of this specification, polished rod manufactured from any AISI or equivalent specification recommended cast iron or carbon steel as follows.
a) ASTM A536 ductile iron 65-45-12, or equivalent international series number.
b) Carbon Steel; aisi1015 to 1045 or AISI 1515 to 1545, or equivalent international series number.

2. Mechanical Properties


Tie allowable hardness range for polished rod clamps is between 190 and 300 HB


3. Maximum Load Rating


Each polished rod clamp design has a stated maximum load rating. The maximum rated load is no more than 75% of the minimum load to initial slippage when a new polished rod clamp which has successfully completed validation testing per in accordance with this specification.

4. Specification


Polished rod clamps are furnished for the polished rod sizes.

Type Working load

Max text load

 Size

Bolt torque

 Height

Body material

Shipping weight
Triple Bolt 45,000 lb 76,000 lb

1-1/8”

1-1/4”

1-1/2”

 250 lb-ft 7.35”

Forged Alloy

Steel

 12.5 LBS

WL12000 single bolt Polished Rod Diameter Working load Tightening Torque Weight
22mm 78.5KN 3200N.m 5.6Kg
25mm 100KN 5.5Kg
25.4mm (1in) 100KN 5.5Kg
28.6mm (1 1/8in) 118KN 5.5Kg
WL16000 two bolt Polished Rod Diameter Working load Tightening Torque Weight
25.4mm (1 in) 118KN 1545N.m 7.3 Kg
28mm 157KN 7.2 Kg
28.6mm (1 1/8in) 157KN 7.2 Kg
31.8mm (1 1/4in) 157KN 7.1 Kg
32mm 157KN 7.1 Kg
38.1mm (1 1/2in) 178KN 9 Kg
WL18100 three bolt Polished Rod Diameter Working load Tightening Torque Weight
31.8mm (1 1/4in) 178 KN 1977N.m 10.35Kg
32mm 178 KN 10.35Kg
38.1mm (1 1/2in) 178 KN 10.2Kg
