Solid Rigid Casing Centralizer Welded Vane With Screws

Name: Solid Rigid Casing Centralizer Welded Vane With Screws
Brand: Puyang Zhongshi Group
Price: 1 USD

Brand Name : Puyang Zhongshi Group

Model Number : 4 1/2"~36"

Certification : API,ISO,QHSE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, MoneyGram

Delivery Time : depends on quantity

Packaging Details : Wooden Box

Product : Solid Rigid Welded Vane with Screws Casign centralizer

Installation : Slip-on Type

Type : Solid rigid

Vane Type : Spiral

Color : Red Color

Application : Well cementing

Contact Now

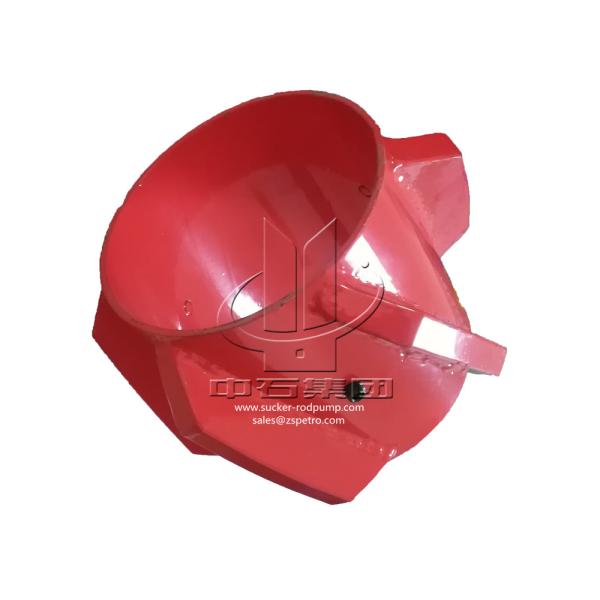

Solid Rigid Welded Vane with Screws Casign centralizer

It provides mechanism that centers the casing in the hole and allows uniform cement flow around the casing to help protect it at all points. Efficient in the cementing process, we provide this machine in various specifications and hole sizes, including turbulence generating designs. It helps to clean the annulus and distribute the cement more evenly and uniformly.

Solid Rigid Welded Vane with Screws Casign centralizer Features

Right hand or left hand is available.
The solid rigid centralizer with high tensile and yield strengths is used in deviated or horizontal wells.
The solid rigid centralizers are available, straight or spiral blade both available,
Straight blade for low density fluid,spiral blade for high density fluid.

Solid Rigid Welded Vane with Screws Casign centralizer Specification

NO.	Size (in)	ID(mm)	OD	Height
NO.	Size (in)	ID(mm)	(mm)	(mm)
8	13-3/8”*17-1/2”	342-347	440	250
7	9-5/8”*12-1/4”	250-255	311	250
4	7”*8-1/2”	181-186	210	130
5	7”*9-5/8”	181-186	240	200
6	7-5/8”*9-5/8”	197-201	240	200
3	6”*8-1/2”	156-158	210	130
1	5-1/2”*7”	142-148	174	130
2	5-1/2”*8-1/2”	142-148	210	130
