Insertable Configuration Sucker Rod Pump With Carbon Steel Barrel

Brand Name : Zhongshi

Model Number : Sucker rod pump

Certification : API, ISO, QHSE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/P, T/T, Western Union, D/A

Supply Ability : 1000 SETS/MONTH

Delivery Time : 10~15 workdays

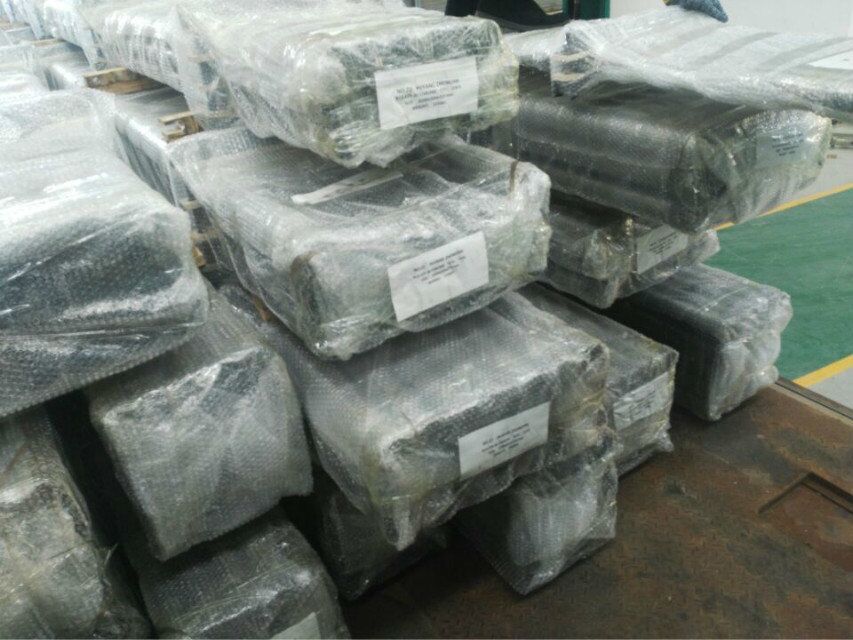

Packaging Details : Standard exported packing

Barrel material : Precision carbon steel

Type : Rod type

Feature : Lower downhole pressure well

Seating type : Mechanical or cup

Barrel type : Thin-walled or heavy-walled

API certificate : API 11AX-0061

Application : Artificial lift pumping

Plunger : Spray metal plunger

Contact Now

Insertable Configuration Sucker Rod Pump With Carbon Steel Barrel

Insertable Sucker Rod Pump Description

Sucker rod pump is equipped with a seating nipple(there are two seating nipples in API-RHBM-AC) , seating nipple connection on the tubing string, down to the bottom of the well with the tubing string. Plunger assembly connection on the sucker rod string and with the pump overall down to seating nipple position together , pump with fixed inside the seating nipple , Plunger assembly with the sucker rod string up and down reciprocating movement to achieve pumping work.

The SRP companies have improved the operation of the whole system including pump-off controllers, better gas separation, gas and solids handling pumps and optimization using surface and bottom-hole cards. Because its wide operation range and adaptability of the system to others wells with minimum cost becomes a economically attractive solution for oilfield development.

Technical parameters:

Model Pump diameter

Barrel length

(ft)

Plunger length

(ft)

Stroke length

(ft)

Extension length

(ft)

Tubing size

EUE/NUE

Sucker rod

size
20-125RWAM Ø31.75

2.1-10

0.3-8

1.2-9

/

 2-3/8” 5/8” 3/4”
20-125RWAC
20-125RWBM
20-125RWBC
20-150RWAM Ø38.10
20-150RWAC
20-150RWBM
20-150RWBC
25-200RWAM Ø50.80 2-7/8”
25-200RWAC
25-200RWBM
25-200RWBC
30-250RWAM Ø63.50 3-1/2”
30-250RWAC
30-250RWBM

Features


1. Built with bottom or top hold downs
2. Insertable configurations
3. Spray metal plungers in usual

Insertable Configuration Sucker Rod Pump With Carbon Steel Barrel
