Precision Metal Suker Rod Pump For Slim Holes Well

Name: Precision Metal Suker Rod Pump For Slim Holes Well
Brand: Zhongshi
Price: 1 USD

Brand Name : Zhongshi

Model Number : RHAC

Certification : API, ISO, QHSE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/P, T/T, Western Union, D/A

Supply Ability : 1000 SETS/MONTH

Delivery Time : 10~15 workdays

Packaging Details : Standard exported packing

Barrel material : 45# Steel

Warranty : One year

Feature : Slim hole oil well

Application : Oil production

Usage : Oilfield

Plunger material : 45# steel

Contact Now

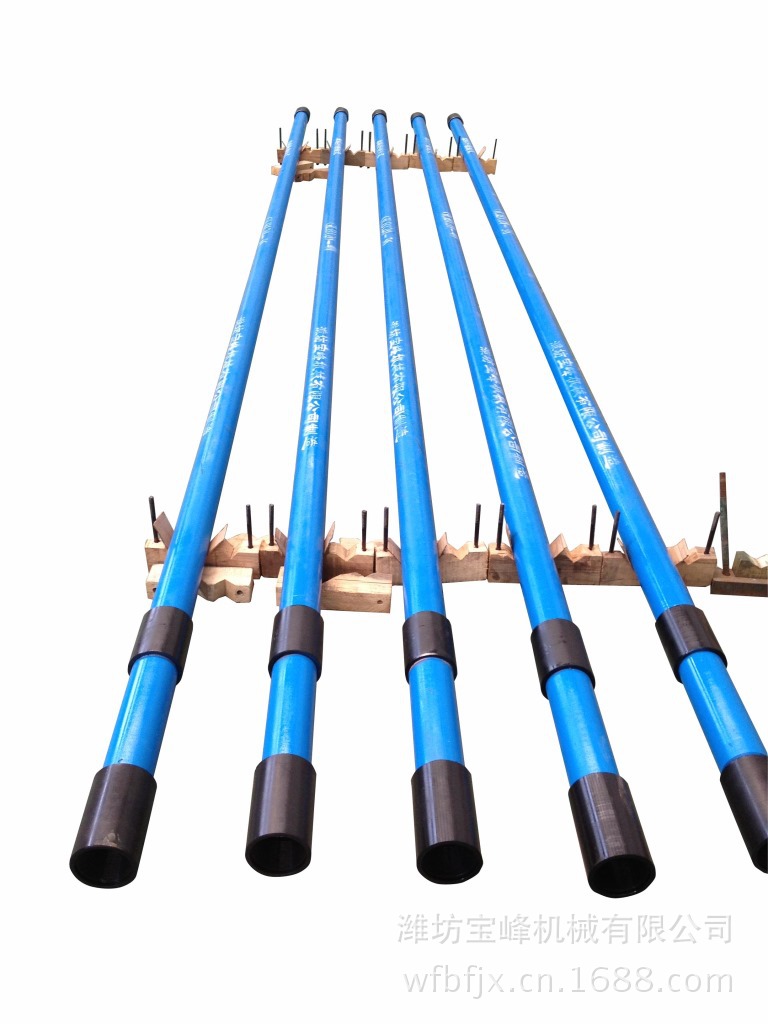

Precision Metal Sucker Rod Pump For Slim Holes Well

Precision Metal Sucker Rod Pump Description

The Sucker Rod Pumping System (SRP) is considered the most popular artificial lift method worldwide. Its applications cover very low downhole pressure wells, slim holes, multiple completions, high temperature and viscous oil. The SRP companies have improved the operation of the whole system including pump-off controllers, better gas separation, gas and solids handling pumps and optimization using surface and bottom-hole cards. Because its wide operation range and adaptability of the system to others wells with minimum cost becomes a economically attractive solution for oilfield development.

Puyang Zhongshi Group manufacture all subsurface pumps covered by API Spec 11AX, including all barrel and plunger materials and surface finishes.This is why our sucker rod pumps can be furnished with the components most suitable for your field of application and pumping operations can easily be extended to corrosive environments.
To achieve maximum performance,API subsurface pumps are machined with extra small clearance between the plunger and the inside wall of the barrel.

Technical parameters:

Model	mm(in) Nominal Dia.	m(ft)Plunger Length	Stroke (m)	m3/d Pump Constant	Tubing And Thread	In Sucker Rod
20-125TH	32(1.25)	1.2-1.8 (4-6)	0.6-7.3	1.14	27/8NU/EU	¾
20-125RHAC/M	32(1.25)		0.6-7.3	1.14	27/8NU/EU	¾
20-125RHBC/M	32(1.25)		0.6-7.3	1.14	27/8NU/EU	¾
20-125RHTC/M	32(1.25)		0.6-7.3	1.14	27/8NU/EU	¾
25-125TH	32(1.25)		0.6-7.3	1.14	27/8NU/EU	¾
25-150RHAC/M	38(1.50)		0.6-7.3	1.64	27/8NU/EU	¾
25-150RHBC/M	38(1.50)		0.6-7.3	1.64	27/8NU/EU	¾
25-150RHTC/M	38(1.50)		0.6-7.3	1.64	27/8NU/EU	¾
20-150TH	38(1.50)		0.6-7.3	1.64	27/8NU/EU	¾
25-150TH	38(1.50)		0.6-7.3	1.64	27/8NU/EU	¾
20-175TH	44(1.75)		0.6-7.3	2.24	27/8NU/EU	¾
25-175RHAC/M	44(1.75)		0.6-7.3	2.24	27/8	¾
25-175RHBC/M	44(1.75)		0.6-7.3	2.24	27/8NU/EU	¾
25-175RHTC/M	44(1.75)		0.6-7.3	2.24	27/8NU/EU	¾
25-175TH	44(1.75)		0.6-7.3	2.24	27/8NU/EU	¾
25-225TH	57(2.25)		0.6-7.3	3.69	27/8NU/EU	¾
30-275TH	70(2.75)		0.6-7.3	5.50	3½NU/EU	7/8
30-225RHAC/M	57(2.25)		0.6-7.3	3.69	3½ NU/EU	¾
30-225RHBC/M	57(2.25)		0.6-7.3	3.69	3½ NU/EU	¾
30-225RHTC/M	57(2.25)		0.6-7.3	3.69	3½ NU/EU	¾
35-325TH	83(3.25)		0.6-7.3	7.70	4NU/EU	7/8
40-375TH	95(3.75)		0.6-7.3	10.26	4½NU/EU	1

Features

1. Manufactured according to API 11AX specifications

2. Proprietary improvements

3. Designed for better performance
