Top Anchored Sucker Rod Pump For Sandy Oil Wells

Brand Name : Zhongshi

Model Number : RWBM

Certification : API, ISO, QHSE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/P, T/T, Western Union, D/A

Supply Ability : 1000 SETS/MONTH

Delivery Time : 10~15 workdays

Packaging Details : Standard exported packing

Pump type : Sucker rod pump

Anchor location : Top

Application : Sandy oil well

Usage : Oil production

Barrel structure : Stationary

Barrel material : Carbon steel in usual

Contact Now

Top Anchored Sucker Rod Pump For Sandy Oil Wells

Top Anchored Sucker Rod Pump description

The rod pump is connected to sucker rod after being assemblied on the surface then it is pulled down to the well bottom through the tubing. Thus it is convenient for the inspection and workover because they can be pulled up and down through the tubing and suitable for deeper well.

The life span of tubing can be prolonged for decreasing the times of the thread of the tubingbeing turned on and off and the time of the workover. The rod pump can be classified into two types of mechanical seating and cup seating.

Also it is divided into three types as RHA (stationary heavy well barrel top anchor rod pump), RHB (stationary heavy well barrel bottom anchor rod pump) and RHT (travelling heavy well barrel bottom anchor rod pump).

Thin wall RWBM pump parameter list:

Specification Pump diameter (in) Barrel length (ft) Stroke length (ft) Extension length (ft) Tubing size EUE(in)
20-125RWBM Ø31.75 2.1-10.4 1.2-9.0 / 2-3/8”
20-150RWBM Ø38.10 2-3/8”
25-200RWBM Ø50.80 2-7/8”
30-250RWBM Ø63.50 3-1/2”

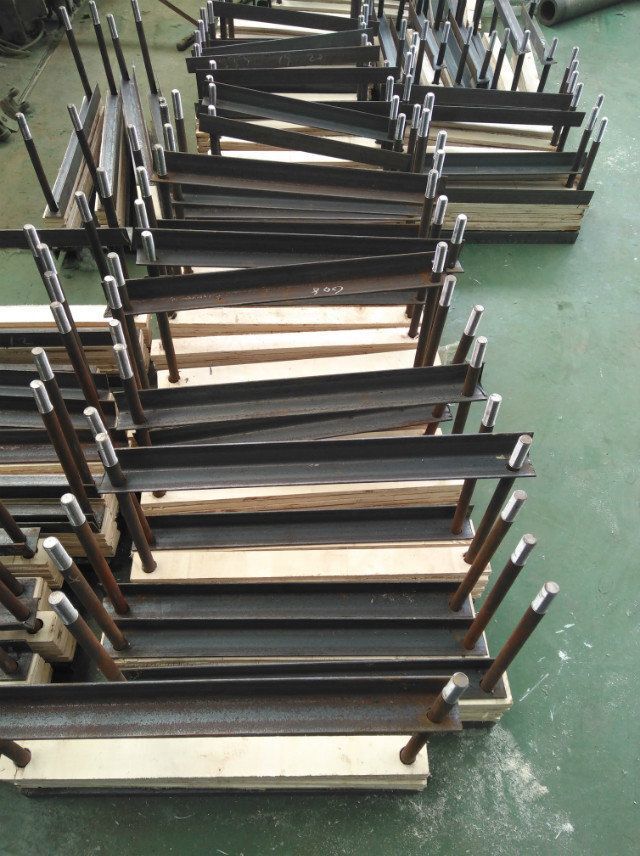

Packing Pictures

Top Anchored Sucker Rod Pump For Sandy Oil Wells
