API Standard Stationary Pump Barrel Sucker Rod Pump
Product Description
Sucker rod pumps are categorized according to the API 11AX pump designation.
API-RHAC, Rod, Stationary Heavy Wall Barrel, Cup Top Anchor Pump
API-RHBM, Rod, Stationary Heavy Wall Barrel, Mechanical Bottom Anchor Pump
API-RHBC, Rod, Stationary Heavy Wall Barrel, Cup Bottom Anchor Pump
API-RWAM, Rod, Stationary Thin Wall Barrel, Mechanical Top Anchor Pump
API-RWAC, Rod, Stationary Thin Wall Barrel, Cup Top Anchor Pump
API-RWBM, Rod, Stationary Thin Wall Barrel, Mechanical Bottom Anchor Pump
Rod pump should be installed inside the tubing with the sucker rod. It is not necessary to pull the tubing out of the well when checking the pump, which can make the operation easier and quicker. According to seating mode, the rod pump can be divided into two types: cup hold-down pump and mechanical hold-down pump. According to the anchored position, the rod pump can be divided into top anchor pump and bottom anchor pump (including stationary barrel type and traveling barrel type).
Features:
1. Statioary barrel
2. Suitable for sandy wells
3. Barrel length:8-30ft
Rod pump and tubing pump API specifications list:
| API Models | mm(in)
Nominal Dia. | m(ft)Plunger
Length | Stroke m | m3/d Pump
Constant | Tubing And
Thread | In Sucker
Rod |
| 20-125TH | 32(1.25) | 1.2-1.8 (4-6) | 0.6-7.3 | 1.14 | 27/8NU/EU | ¾ |
| 20-125RHAC/M | 32(1.25) | 0.6-7.3 | 1.14 | 27/8NU/EU | ¾ |
| 20-125RHBC/M | 32(1.25) | 0.6-7.3 | 1.14 | 27/8NU/EU | ¾ |
| 20-125RHTC/M | 32(1.25) | 0.6-7.3 | 1.14 | 27/8NU/EU | ¾ |
| 25-125TH | 32(1.25) | 0.6-7.3 | 1.14 | 27/8NU/EU | ¾ |
| 25-150RHAC/M | 38(1.50) | 0.6-7.3 | 1.64 | 27/8NU/EU | ¾ |
| 25-150RHBC/M | 38(1.50) | 0.6-7.3 | 1.64 | 27/8NU/EU | ¾ |
| 25-150RHTC/M | 38(1.50) | 0.6-7.3 | 1.64 | 27/8NU/EU | ¾ |
| 20-150TH | 38(1.50) | 0.6-7.3 | 1.64 | 27/8NU/EU | ¾ |
| 25-150TH | 38(1.50) | 0.6-7.3 | 1.64 | 27/8NU/EU | ¾ |
| 20-175TH | 44(1.75) | 0.6-7.3 | 2.24 | 27/8NU/EU | ¾ |
| 25-175RHAC/M | 44(1.75) | 0.6-7.3 | 2.24 | 27/8 | ¾ |
| 25-175RHBC/M | 44(1.75) | 0.6-7.3 | 2.24 | 27/8NU/EU | ¾ |
| 25-175RHTC/M | 44(1.75) | 0.6-7.3 | 2.24 | 27/8NU/EU | ¾ |
| 25-175TH | 44(1.75) | 0.6-7.3 | 2.24 | 27/8NU/EU | ¾ |
| 25-225TH | 57(2.25) | 0.6-7.3 | 3.69 | 27/8NU/EU | ¾ |
| 30-275TH | 70(2.75) | 0.6-7.3 | 5.50 | 3½NU/EU | 7/8 |
| 30-225RHAC/M | 57(2.25) | 0.6-7.3 | 3.69 | 3½ NU/EU | ¾ |
| 30-225RHBC/M | 57(2.25) | 0.6-7.3 | 3.69 | 3½ NU/EU | ¾ |
| 30-225RHTC/M | 57(2.25) | 0.6-7.3 | 3.69 | 3½ NU/EU | ¾ |
| 35-325TH | 83(3.25) | 0.6-7.3 | 7.70 | 4NU/EU | 7/8 |
| 40-375TH | 95(3.75) | 0.6-7.3 | 10.26 | 4½NU/EU | 1 |

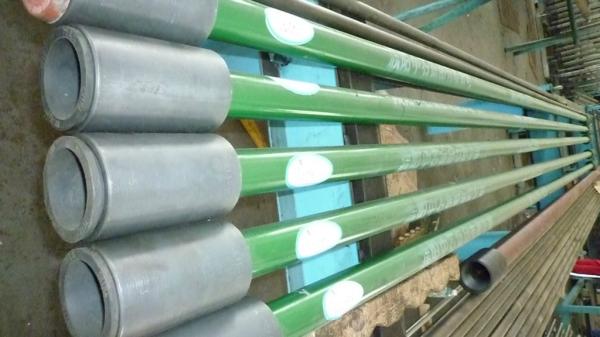

Product photo:
