Stationary Heavy Wall Seating Oil Well Pump Tubing Carbon Steel

Brand Name : Zhongshi

Model Number : TH(B)M

Certification : API, ISO, QHSE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/P, T/T, Western Union, D/A

Supply Ability : 1000 SETS/MONTH

Delivery Time : 10~15 workdays

Packaging Details : Standard exported packing

Pump type : Tubing pump

Feature 1 : Heavy wall barrel

Feature 2 : Stationary barrel

Application : Large production oil well

Basic parts material : Carbon steel

Barrel coating : Chrome plated or nickel carbide

11AX No. : 0061

Contact Now

Stationary Heavy Wall Seating Oil Well Tubing Pump

Stationary Heavy Wall Seating Tubing Pump description:

Model description:
API-TH(B)M,Tubing ,Heavy Wall Barrel ,Mechanical Anchor Pump
API-TH(B)C,Tubing ,Heavy Wall Barrel ,Cup Type Anchor Pump

Tubing pump barrel is put in the well to the designed depth with tubing.

In the process of production, when traveling valve and standing valve appear problems,we can pull the traveling valve and standing valve out the well through the sucker rod string, plungerand the puller ,instead of pull the whole pump and tubing string out of the well, reduce the labor intensity of operation, reduce the operation cost.

Tubing pump is the strongest pump.

Technical parameters

API pump technical Specifications
Type OD(mm) Barrel Length (m) Stroke Range (m) Length of Extension Pub Joint(m) Thread for Tubing(in)
Rod pumps 31.8

2.1
2.4
2.7
3.0
3.3
3.6
3.9
4.2
4.5
4.8
5.7
6.0
6.6
7.3
9.1

 1.5-6 0.3
0.6
0.9		 2 3/8
38.1 2 7/8
44.45 2 7/8
Tubing
pumps		 31.8 1.5-7.8

0.3
0.6
0.9

 2 3/8
38.1 2 7/8
44.45 2 7/8
57.15 2 7/8
69.85 2 7/8 3 1/2
82.55 3 1/2
95.25 3 1/2


Photos

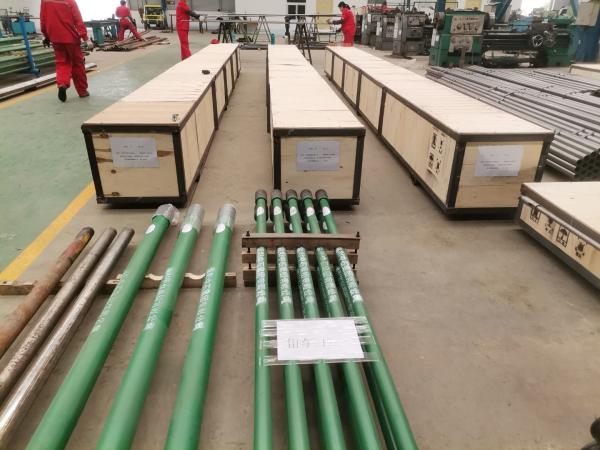

Stationary Heavy Wall Seating Oil Well Pump Tubing Carbon Steel
Stationary Heavy Wall Seating Oil Well Pump Tubing Carbon Steel
