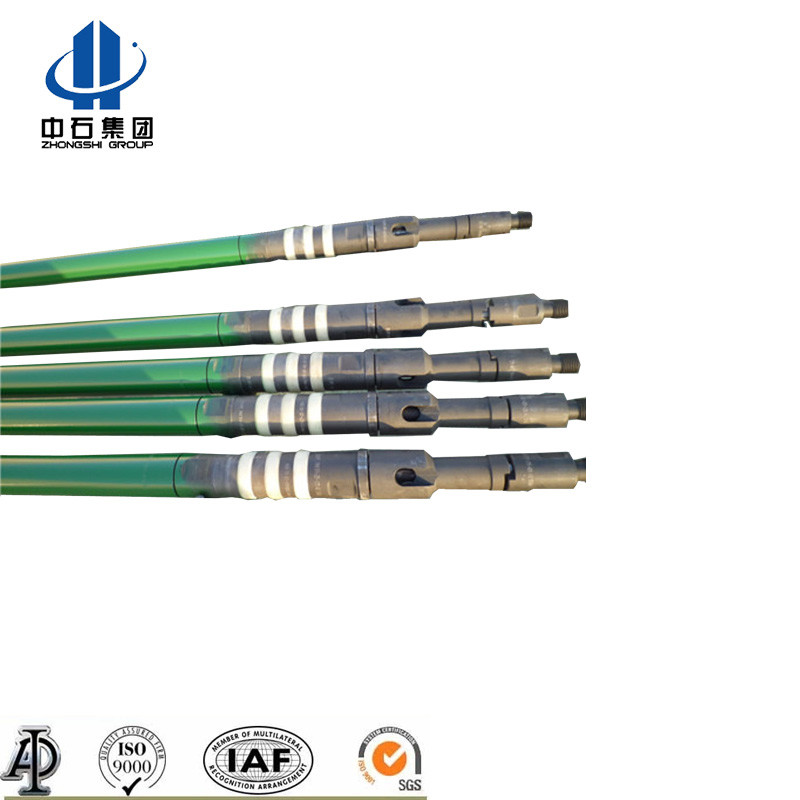

API standard oilfield tubing pump Product Description: During the operation of a rod-having pump in a well, an API standard subsurface sucker rod pump plays a significant role as an essential equipment for oil production. The subsurface sucker rod pump can be categorized into two types: tubing pump and rod pump.
Specification table:
| 1 | 2 | 3 | 4 | 5 |
| Type of Pump | Letter Designation |
| Metal Plunger Pumps | Soft-Packed Plunger Pumps |
| Heavy-Wall Barrel | Thin-Wall Barrel | Heavy-Wall Barrel | Thin-Wall Barrel |
| Rod Pumps | | | | |
| Stationary Barrel, Top Anchor | RHA | RWA | | RSA |
| Stationary Barrel, Bottom Anchor | RHB | RWB | | RSB |
| Stationary Barrel, Bottom Anchor | RHT | RWT | | RST |
| Tubing Pumps | TH | -- | TP | -- |
Tubing pumps operate by attaching the pump barrel assembly directly to a tubing string. The plunger assembly is linked to the sucker rod string and moves in a reciprocating motion, aiding in the production process. A significant benefit of tubing pumps is that if there are problems with the traveling valve or fixed valve, only the valve side components like the sucker rod, piston, and extractor must be replaced. This eliminates the requirement to remove the entire pump and tubing string from the well, leading to decreased labor intensity and operational expenses.
API standard oilfield tubing pump Technical parameters
Main parts process and material:
Pump barrel: plain carbon steel plating (A1), ordinary carbon steel carbonitriding (B1), ordinary carbon steel carburizing (B2), low alloy steel nitride (B5).
Plunger: 1045 steel spraying (B1), 1045 steel spraying (B2), 1045 steel chrome plating (A1), 1045 steel double chrome plating (A2).
Valve ball and seat: stainless steel (A1), cobalt chromium (B2), tungsten carbide (C1), nickel and carbon compounds (C2), titanium carbide (C3).
Other accessories: plain carbon steel, low alloy steel, stainless steel, brass, and other materials.
Company Information
Puyang Zhongshi Group Co., Ltd was established in 1997 and is a leading manufacturer of oilfield equipment and cementing accessories. As a restructured enterprise of Sinopec, our company has a rich history and extensive experience in the industry. With 10 years of exporting expertise, we have established ourselves as a trusted supplier in the resources market of both Sinopec and CNPC. Our group consists of nine subsidiary factories and employs over 500 dedicated individuals.
We have the certificates of API 5CT, API 10D, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001. Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, the Middle East, etc.
