Product Description:

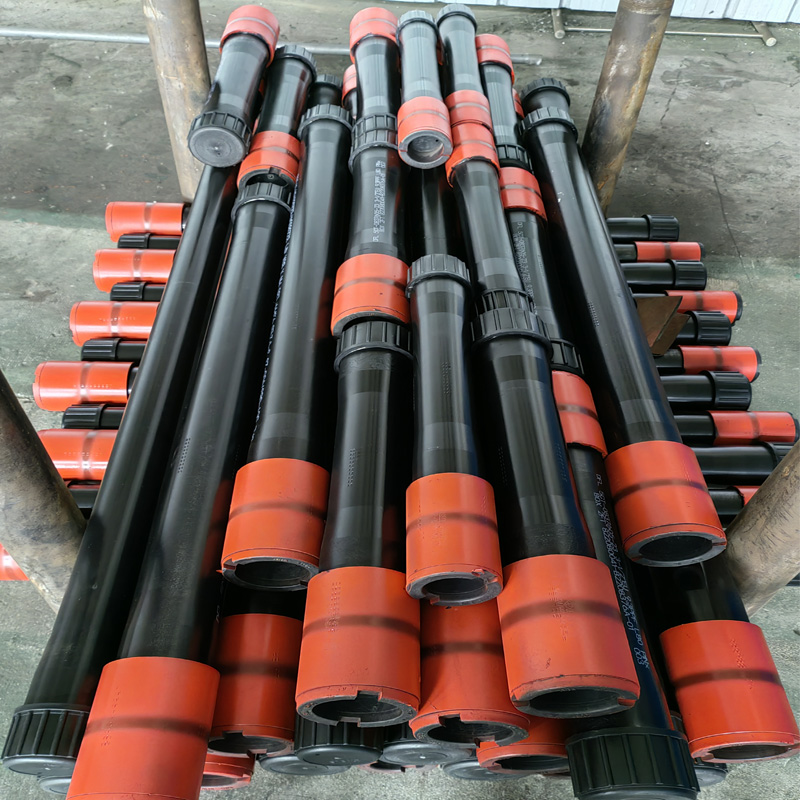

API 5CT PUP JOINT OF TUBING OR CASING
A pup joint is a casing or tubing of length shorter than Range 1 with the same thread connection, used to adjust the length of tubular strings to its exact requirement.
Features:
1. Designed and manufactured according to API spec 5CT and API 5B. 2. All standard lengths (2', 3', 4', 5', 6', 8', 10' or 12'), but any length can be specified. 3. The same performance with casing / tubing. 4. Available in API and proprietary steel grades: H40, J55, K55, L80, N80/Q, C90, T95, P110, Q125. 5. Available in API thread: EUE, NUE for tubing, BTC, STC, LTC for casing. 6. Processing: Seamless.
Technical Parameter:
| Diameters: | 1.9" through 4.5" nominal O.D. |
| Weights: | Standard or Heavy Wall |
| Lengths: | 2, 3, 4, 6, 8, 10, 12 ft. Standard
(Other lengths available upon request) |
| Grades: | J-55, N-80, N-80 Q & T, L-80, P-110 |
| Connections: | EUE, NUE, Buttress |
| Size | Type of Thread | O.D*L (mm) | Weight(kg) |
| 2-3/8" | NUE | 73.02*107.95 | 1.28 |
| 2-3/8" | EUE | 77.80*132.82 | 1.55 |
| 2-7/8" | NUE | 88.90*130.18 | 2.34 |
| 2-7/8" | EUE | 93.17*133.35 | 2.40 |
| 3-1/2" | NUE | 107.95*142.88 | 3.71 |
| 3-1/2" | EUE | 114.30*146.05 | 4.10 |
| 4" | NUE | 120.65*146.05 | 4.35 |
| 4" | EUE | 127.00*152.40 | 4.82 |
| 4-1/2" | NUE | 132.08*155.58 | 4.89 |
| 4-1/2" | EUE | 141.30*158.75 | 6.05 |
