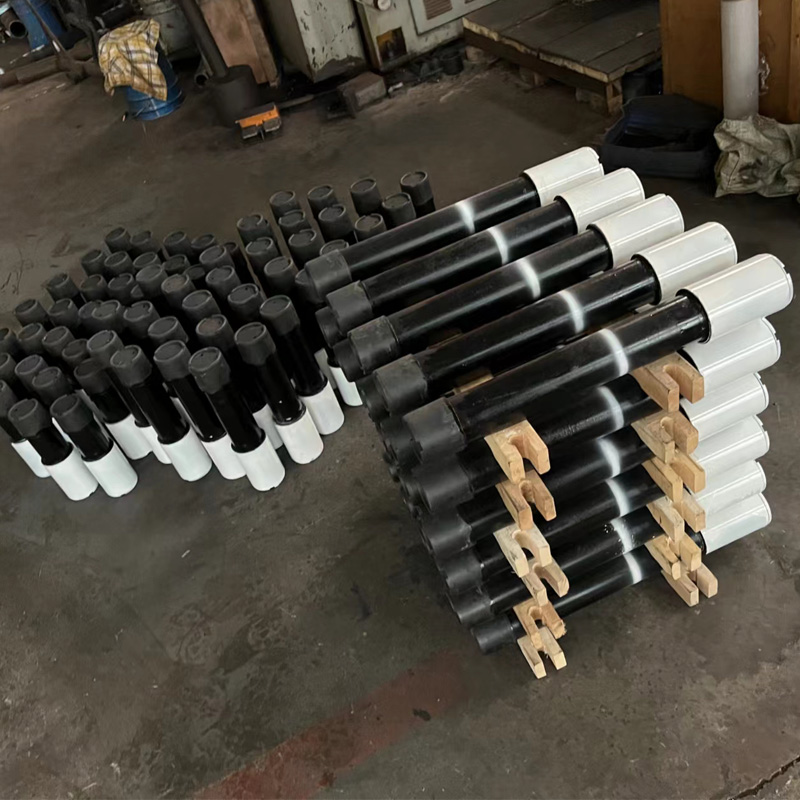

Oilfield 2 7 8 Thread Seamless Steel Pup Joint API 5CT

Name: Oilfield 2 7 8 Thread Seamless Steel Pup Joint API 5CT
Brand: zhongshi
Price: 1 USD

Brand Name : zhongshi

Model Number : pup joint

Certification : API 5CT ,ISO ,QHSE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Delivery Time : 2 weeks

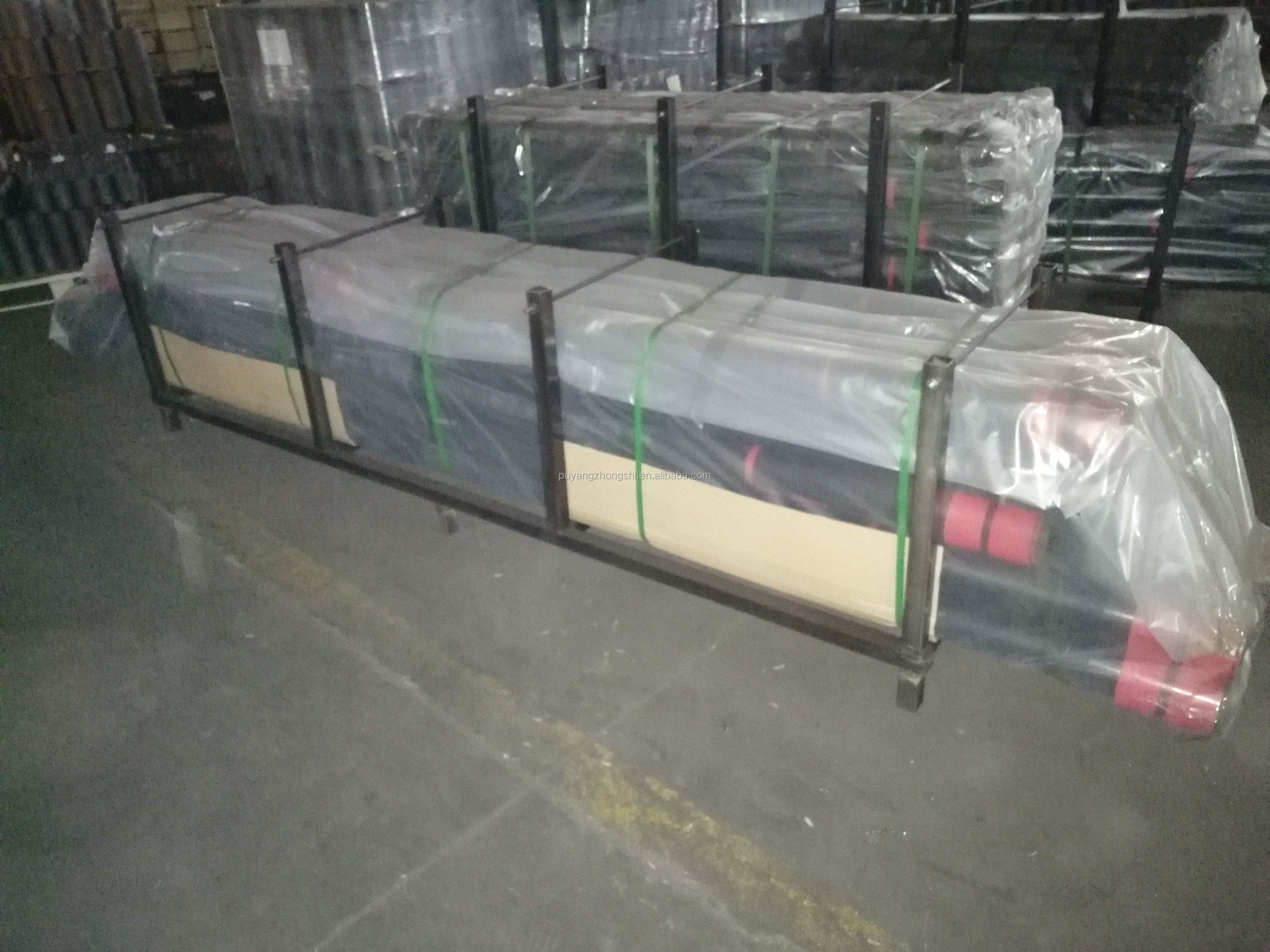

Packaging Details : exported packing

Material : alloy steel,J55 K55 N80 L80 P110

Product name : API 5ct casing and tubing pup joint

Standard : API, ISO,QHSE

Thread : EUE , NUE

Thickness : 2.87-30mm,4.24--20.62mm

Size : 2-3/8-----3-1/2

Contact Now

Product Description:

The casing pup joint are used to adjust the height of full length tubing or casing strings, they are also used to asjust the depth of downhole tools.

The casing pup joint conforms to API Specification 5ct and other related standards,Having been anthorized to use the API monogram.

All sizes of NUE&EUE pup joint are available in grade J,N,L, which all of them conform to API latest specification..

As there are a lot of different details for the same kind product,our company can customize product according to the client's requirments.

Technical Parameter:

Diameters:	1.9" through 4.5" nominal O.D.
Weights:	Standard or Heavy Wall
Lengths:	2, 3, 4, 6, 8, 10, 12 ft. Standard (Other lengths available upon request)
Grades:	J-55, N-80, N-80 Q & T, L-80, P-110
Connections:	EUE, NUE, Buttress

Size	Type of Thread	O.D*L (mm)	Weight(kg)
2-3/8"	NUE	73.02*107.95	1.28
2-3/8"	EUE	77.80*132.82	1.55
2-7/8"	NUE	88.90*130.18	2.34
2-7/8"	EUE	93.17*133.35	2.40
3-1/2"	NUE	107.95*142.88	3.71
3-1/2"	EUE	114.30*146.05	4.10
4"	NUE	120.65*146.05	4.35
4"	EUE	127.00*152.40	4.82
4-1/2"	NUE	132.08*155.58	4.89
4-1/2"	EUE	141.30*158.75	6.05
