Oil Rod Insert Pump And Tubing Pump For Oil Production In Oilfield

Brand Name : Zhongshi

Model Number : RH,RW,TH

Certification : API 11AX

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, D/P, D/A, L/C, Western Union

Supply Ability : 3000 sets/year

Delivery Time : 15~30 workdays

Packaging Details : Export packing

Other name : Downhole pump

Pump type : Sucker rod pump and tubing pump

Pump barrel material : Carbon steel or alloy steel

Fittings material : Low alloy steel

Normal valve ball & seat : Stainless steel valve ball & seat

Other valve ball & seat : Tungsten carbide, stellite and ceramics

Application : Oil production

Machine type : Petroleum machinery

Contact Now

Oil Rod Insert Pump And Tubing Pump For Oil Production In Oilfield

Sucker rod insert pump and tubing pump description:

The rod pump is connected to sucker rod after being assemblied on the surface then it is pulled down to the well bottom through the tubing. Thus it is convenient for the inspection and workover because they can be pulled up and down through the tubing and suitable for deeper well.

When the rod inserted pump is running, fluid discharged from the guide cage flushes sand sedimentation away

The standing valve at the bottom of the pump is apt to immerse in the well fluid, therefore, it is applicable to the well with low fluid level

the top anchor mode helps the pump to keep in free suspension state and provides with self-alignment effect, therefore, it is applicable to the deviated well

The pump barrel assembly of the tubing pump connected on the tubing string,and with its down to the bottom of the well.Plunger assembly connected on the sucker rod string and with it down to the pump barrel position in the well,then with it do up and down reciprocating motion, so as to realize the production process.


Basic technical information for sucker rod pump:

Item Thin wall rod pump Thick wall rod pump
Pump OD (in) 1 1/4-2 1/2 1 1/4-2 1/2
Plunger length (ft) 2-24
Barrel length (ft) 2-34
Material API code

Barrel: A1~A6, B1~B6, C1~C5, D1~D5, N1~N6

Plunger: B1~B3, C1~C3, D1~D3, E1~E3, F1~F3

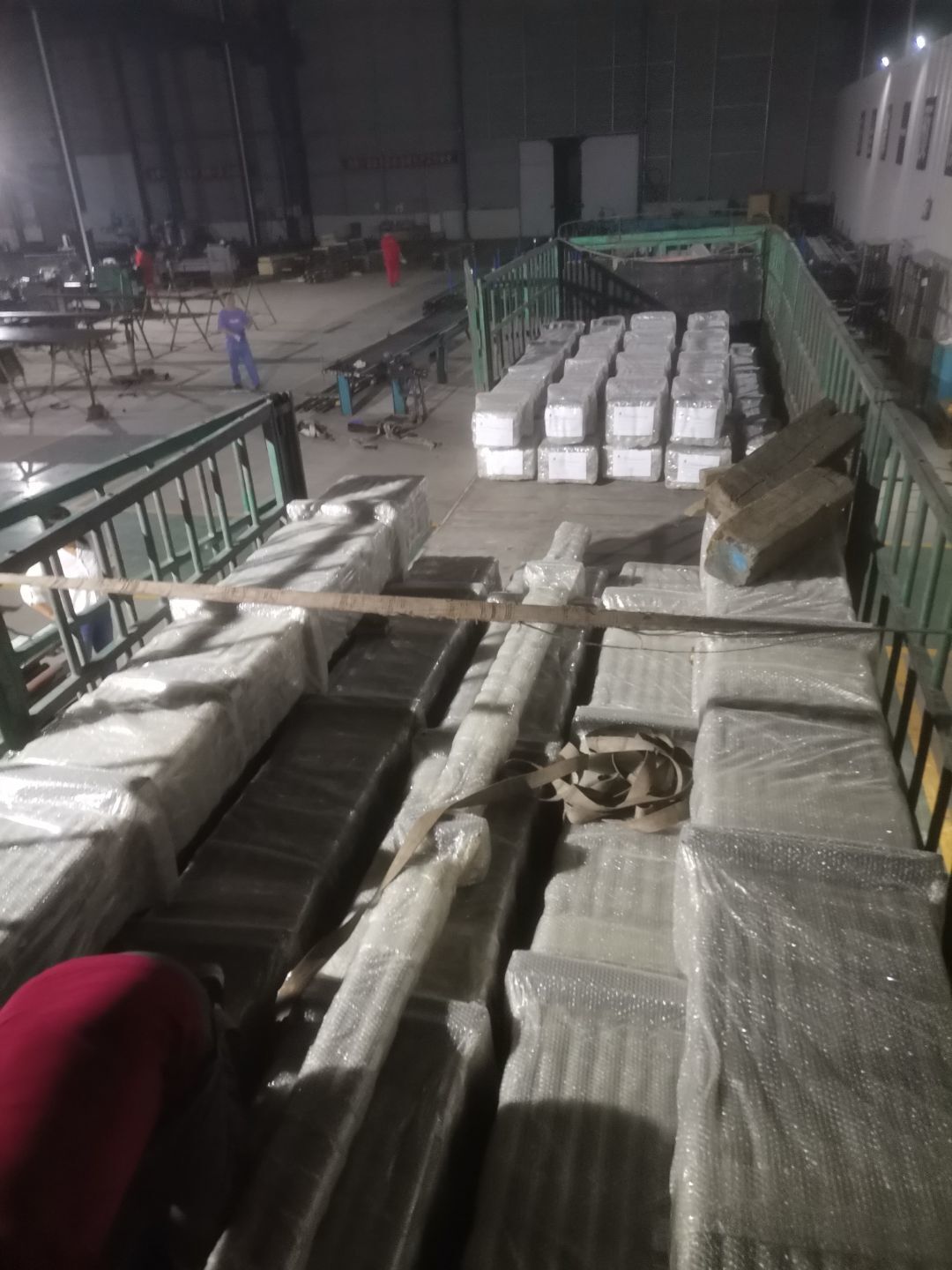

Downhole pump delivery photo:

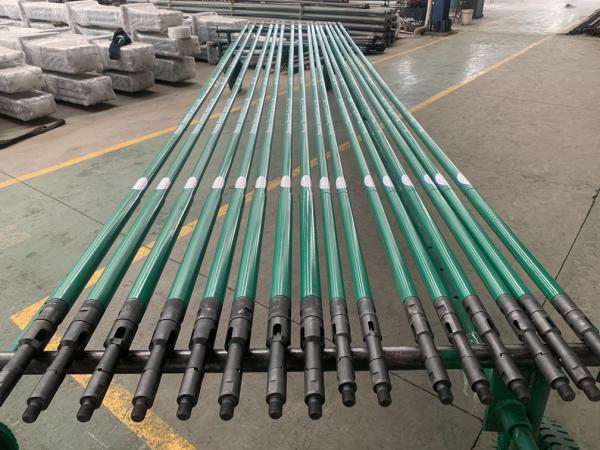

Oil Rod Insert Pump And Tubing Pump For Oil Production In Oilfield
